Why the Arduino Nano V3 Remains a Prototyping Staple

When transitioning from bulky development boards to compact, breadboard-friendly microcontrollers, the Arduino Nano V3 is universally recognized as the ultimate stepping stone. It offers the exact same computational power as the legendary Arduino Uno but shrinks the footprint down to a fraction of the size, allowing it to plug directly into a standard solderless breadboard. For beginners in 2026, understanding the nuances of this specific board revision is critical to avoiding the most common hardware and software pitfalls that stall early electronics projects.

The 'V3' Distinction: Optiboot vs. Legacy Bootloaders

Many beginners assume 'V3' simply refers to a minor hardware revision. In reality, the V3 designation specifically indicates the inclusion of the Optiboot bootloader. Older Nano revisions (V1 and V2) utilized the legacy ATmegaBOOT bootloader, which consumed 2KB of the board's precious flash memory and operated at a slower baud rate. The V3's Optiboot bootloader takes up a mere 512 bytes, leaving you with 32,256 bytes for your actual sketch. Furthermore, Optiboot communicates at 115,200 baud, significantly reducing the time it takes to compile and upload complex code. When configuring your Arduino IDE, always ensure you select 'ATmega328P' and not the 'Old Bootloader' option, or your uploads will fail.

Genuine vs. Clone: Navigating the 2026 Market

If you are purchasing an Arduino Nano V3 today, you will immediately notice a massive price discrepancy. A genuine board from the official Arduino Store typically retails between $22.00 and $25.00. Conversely, third-party 'clone' boards manufactured in Shenzhen can be found on Amazon or AliExpress for $3.50 to $5.00 each.

From a purely technical standpoint, the ATmega328P microcontroller at the heart of the clone is identical to the genuine article. Microchip (the manufacturer of the ATmega chip) sells these chips to anyone; they are not proprietary to Arduino. However, clones cut costs on the surrounding passive components, voltage regulators, and most notably, the USB-to-Serial converter chip. Understanding this difference is the key to a frustration-free setup.

Technical Specifications at a Glance

Feature Specification
Microcontroller ATmega328P (or ATmega168 on older/cheaper clones)
Operating Voltage 5V (Logic Level)
Input Voltage (Recommended) 7-12V via VIN pin
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8 (A0 to A7)
DC Current per I/O Pin 20 mA (Absolute max 40 mA)
Flash Memory 32 KB (Optiboot uses 0.5 KB)
SRAM 2 KB
Clock Speed 16 MHz

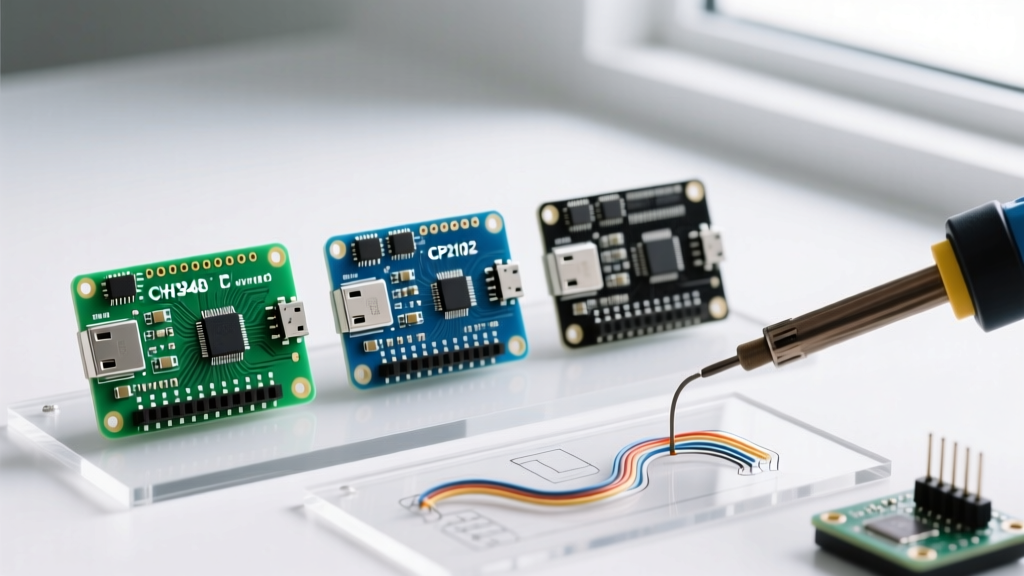

The USB-to-Serial Chip Hurdle (CH340 vs. FTDI)

Genuine Arduino Nanos historically used the FTDI FT232RL chip for USB communication, which has native driver support in almost all modern operating systems. To hit the $4 price point, clone manufacturers substitute this with the CH340G or CH340C chip manufactured by WCH.

If you plug a clone Nano into your PC and the Arduino IDE shows no available COM ports, you are missing the CH340 driver. According to the SparkFun CH340 Installation Guide, Windows 11 and macOS Sonoma/Sequoia sometimes require manual intervention.

  • Windows Users: Download the official WCH CH341SER.EXE installer. Run it as Administrator, click 'Install', and then physically unplug and replug the Nano. Check the Device Manager under 'Ports (COM & LPT)' to verify the COM number.
  • macOS Users: Apple Silicon (M1/M2/M3) Macs require the specific ARM64 version of the CH340 driver. After installation, you must go to System Settings > Privacy & Security to explicitly allow the kernel extension from 'WCH' before the port will mount.

Power Delivery: Avoiding the Most Common Beginner Mistakes

Power mismanagement is the number one reason beginners 'fry' their Nano V3 or experience erratic sensor readings. The Nano is not a power supply; it is a logic controller. Adhere strictly to these limits:

Critical Power Warning: The on-board 3.3V voltage regulator can only safely supply up to 150mA. If you attempt to power a WiFi module like the ESP8266 directly from the Nano's 3.3V pin, the current spikes (which can exceed 300mA during transmission) will cause the regulator to overheat, shut down, or permanently fail. Always use a dedicated external buck converter for high-draw 3.3V components.

Similarly, the 5V pin is directly tied to the USB VBUS line when powered via USB. A standard USB 2.0 port limits current to 500mA. If your Nano draws 50mA, and you attach a standard SG90 micro servo (which can stall and draw 700mA), the total draw exceeds the PC's USB limit. This results in a 'brownout', where the ATmega328P voltage drops below its operational threshold, causing the board to reset endlessly. For motors and servos, always use an external 5V power supply, tying the ground (GND) of the external supply to the GND of the Nano.

Step-by-Step: Your First Breadboard Circuit

Let us move beyond the built-in 'Pin 13' LED and build a proper external circuit. We will wire an external LED to Digital Pin 4 (D4).

Hardware Required

  • 1x Arduino Nano V3 (soldered headers)
  • 1x Standard Solderless Breadboard (830 tie points)
  • 1x 5mm Red LED
  • 1x 220-ohm Resistor (Red-Red-Brown-Gold)
  • 2x Male-to-Male Jumper Wires

Wiring Instructions

  1. Insert the Nano into the breadboard, ensuring the USB port faces the edge. The pins should straddle the center trench.
  2. Connect a jumper wire from the Nano's GND pin to the negative (blue) rail of the breadboard.
  3. Place the 220-ohm resistor with one leg in the same row as the Nano's D4 pin, and the other leg in an empty row.
  4. Insert the Anode (long leg) of the LED into the same row as the free leg of the resistor.
  5. Insert the Cathode (short leg) of the LED into the negative (blue) ground rail.

The Sketch

Open the Arduino IDE, select your board (Arduino Nano), the correct processor (ATmega328P), and your COM port. Upload the following code:

// Define the pin connected to the LED
const int LED_PIN = 4;

void setup() {
  // Initialize the digital pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on (5V)
  delay(500);                   // Wait for 500 milliseconds
  digitalWrite(LED_PIN, LOW);   // Turn the LED off (0V)
  delay(500);                   // Wait for 500 milliseconds
}

Once the upload completes (indicated by the RX/TX LEDs flashing rapidly), your external LED will blink at a 1Hz frequency. The 220-ohm resistor limits the current to roughly 14mA, safely within the 20mA per-pin limit of the ATmega328P.

Troubleshooting: 'Programmer is Not Responding'

No beginner guide is complete without addressing the dreaded avrdude: stk500_recv(): programmer is not responding error. When this occurs, the IDE cannot establish serial communication with the bootloader. Run through this specific diagnostic checklist:

  1. The Cable Trap: Over 40% of these errors are caused by using a 'charge-only' Micro-USB cable. These cables lack the internal D+ and D- data wires. Swap to a cable you have verified transfers data from a smartphone.
  2. Port Collision: Ensure no other software (like Cura, PrusaSlicer, or a serial monitor) is currently holding the COM port open. Only one application can access the serial port at a time.
  3. The Reset Capacitor: The Nano relies on a 0.1µF capacitor between the DTR line of the USB chip and the RESET pin of the ATmega328P to trigger the bootloader. On ultra-cheap clones, this capacitor is sometimes missing or defective. Workaround: Press and hold the physical reset button on the Nano, click 'Upload' in the IDE, and release the button the exact moment the IDE says 'Done Compiling'.
  4. Wrong Processor Selected: As mentioned earlier, if you have a newer V3 board but the IDE is set to 'ATmega328P (Old Bootloader)', the baud rate mismatch will cause a timeout. Switch to the standard 'ATmega328P' option.

By understanding the hardware realities, power limitations, and driver requirements of the Arduino Nano V3, you transition from simply copying tutorials to actively engineering reliable, compact embedded systems.
