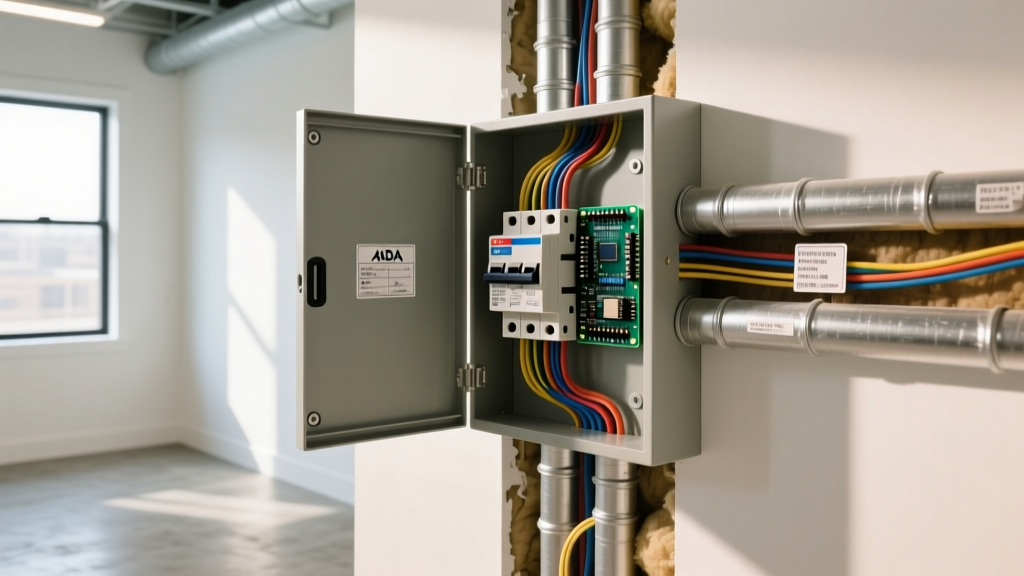

Standard Height of Breaker Box: ADA Rules & Panel Contactor Wiring

The correct height of breaker box installation is governed by a mix of safety codes and accessibility standards, but mounting the enclosure is only the first step. In modern 2026 electrical setups—especially those integrating heavy smart-home loads, EV chargers, or generator interlocks—your panel will likely house electromechanical contactors alongside standard breakers. Getting the mounting height right ensures code compliance, while sizing and wiring the internal contactors correctly ensures your heavy loads don't weld shut or fry your control boards.

NEC and ADA Rules for the Height of Breaker Box

When roughing in a new panel or relocating an old one, two primary standards dictate your mounting height: the National Electrical Code (NEC) and the Americans with Disabilities Act (ADA).

According to NFPA 70 (NEC) Article 240.24(A), overcurrent devices must be "readily accessible." The code explicitly states that the center of the grip of the highest operable breaker handle cannot exceed 6 feet 7 inches (2.0 meters) above the finished floor. There is no strict NEC minimum height, but practical jobsite standards keep the bottom of the enclosure at least 12 to 18 inches off the floor to allow room for rigid conduit sweeps and cable bending radii.

However, if you are wiring an accessible dwelling unit, commercial space, or a home designed for aging-in-place, the ADA Design Standards take precedence for operable parts. The ADA mandates a maximum forward or side reach of 48 inches. In these scenarios, the highest breaker handle (or the main disconnect) must not exceed 48 inches from the floor. This often requires using a shorter, wider panel configuration (like a 40-space wide layout) rather than a tall, narrow 60-space can.

Sizing and Wiring Electromechanical Contactors in the Panel

Standard smart breakers are great for 15A and 20A lighting circuits, but when you need to switch a 50A EV charger via a home automation hub, or integrate a 3-ton A/C compressor with a solar-relay shed controller, you need a definite-purpose contactor (such as the Eaton C25 or Schneider Electric DP series) mounted on the panel's backplane or DIN rail.

Contactor Rating Table

Before buying a contactor, you must read the nameplate correctly. Here is a standard rating breakdown for a typical 40A residential contactor:

Coil vs. Contact Side Wiring

A contactor has two completely isolated circuits. The contact side (Line/Load or L1/T1, L2/T2) carries the heavy load current. You size your wire gauge and torque the terminal lugs based on the load's ampacity and the breaker feeding it. The coil side (A1 and A2) is the low-current control circuit that generates the magnetic field to pull the contacts shut.

CRITICAL DC COIL NOTE: If your smart home relay or solar controller outputs a DC signal (e.g., 24VDC) to trigger the coil, you must wire a flyback diode (like a 1N4007) in reverse parallel across the A1/A2 terminals. DC coils lack the natural zero-crossing of AC power. When the circuit opens, the collapsing magnetic field creates a massive inductive voltage spike that will instantly destroy your controller's switching transistor if not suppressed.

Fuses vs. Breakers: Never treat fuses and breakers as simple interchangeable placeholders when sizing upstream protection for a contactor. A contactor’s short-circuit rating depends entirely on the specific upstream protective device's time-current curve. A Class RK5 fuse clears a 10kA fault in milliseconds, limiting peak let-through current. A standard thermal-magnetic breaker with a Type C magnetic trip curve might let through enough peak energy to weld your contactor contacts shut before it trips. Always verify the contactor's SCCR (Short Circuit Current Rating) table matches your exact upstream breaker or fuse type.

Load Selection Decision Path & Field Testing

Selecting the right contactor means knowing which rating column governs your specific load. A 40A resistive rating does not mean you can switch a 40A motor.

How to Test Dead and Live

When troubleshooting a suspected faulty contactor in your panel, follow this sequence:

1. Dead Test (Power Off, Verified): Set your multimeter to continuity/ohms. Measure across the line and load terminals (L1 to T1). With the coil de-energized, it should read OL (open). Manually press the contactor plunger with an insulated tool; it should read < 1 ohm. Next, measure resistance across the coil terminals (A1 to A2). A healthy AC coil typically reads between 10 and 50 ohms. An OL reading means a burnt, open coil.
2. Live Test (Power On, Extreme Caution): With the system running, measure AC voltage across the coil terminals. It must be within ±10% of the nominal coil voltage. If voltage is low, the contactor will chatter and burn the contacts. Next, measure the voltage drop across the closed main contacts (L1 to T1). A healthy contactor will drop less than 50 millivolts (0.05V). If you read 1V or more, the contacts are pitted, carbon-fouled, and generating dangerous heat.

When to Repair vs. Replace

In residential and light commercial panels, always replace, never repair a failing contactor. If the contacts are pitted, the arc chute is melted, or the unit smells like ozone and burnt plastic, swap the entire unit. Do not attempt to sand or file the contacts. Modern contactor contacts are plated with a specific silver-cadmium or silver-nickel alloy designed to resist arc welding; sanding removes this plating and guarantees premature failure and potential fire.
