How to Wire and Debug an ESP32 Sensor: BME280 I2C Guide

Interfacing an environmental ESP32 sensor like the Bosch BME280 is a rite of passage for embedded makers. It gives you temperature, humidity, and barometric pressure on a single I2C bus. But while the hardware is robust, the I2C implementation on the ESP32’s dual-core Xtensa LX6 architecture has specific quirks—especially regarding default GPIO assignments, logic levels, and internal pull-up resistors. If you have ever stared at a serial monitor screaming that it cannot find your sensor, this guide will walk you through the exact wiring, bulletproof code, and diagnostic steps to get your build running.

Project Spec Sheet & Parts List

Do not mix up the BME280 (humidity + temp + pressure) with the BMP280 (temp + pressure only). The silicon looks identical on cheap clone boards, but the I2C registers differ, which is a primary cause of initialization failures.

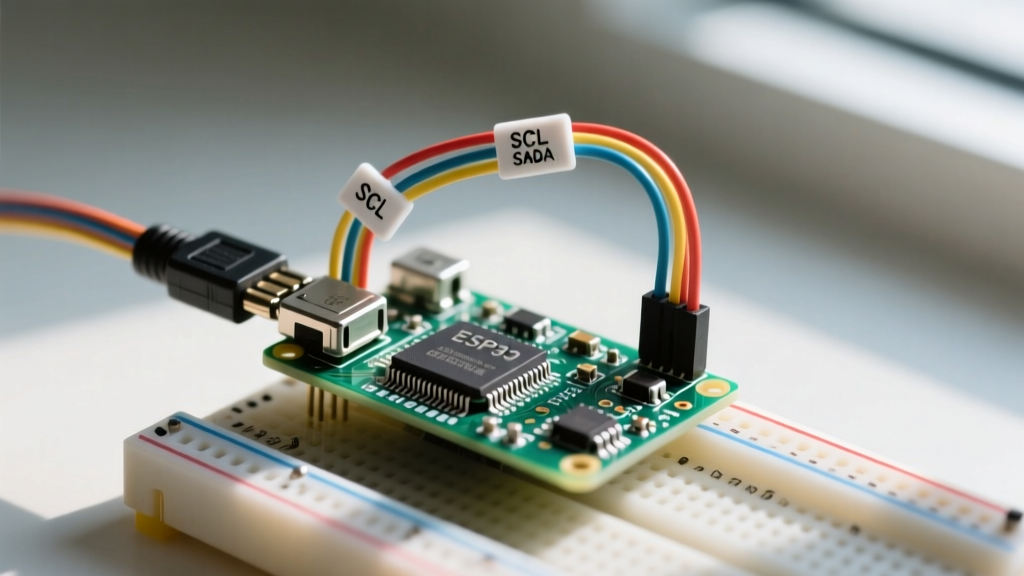

Wiring the ESP32 Sensor: Pin Mapping & Pull-Up Resistors

The ESP32 defaults to specific GPIO pins for its primary I2C bus, but unlike the Arduino Uno, the ESP32 requires you to explicitly define these in software if you want to ensure stability across different board revisions. The default I2C pins for the standard ESP32 DevKit V1 are GPIO 21 (SDA) and GPIO 22 (SCL).

Compilable Arduino Code with I2C Error Handling

This code targets the DOIT ESP32 DEVKIT V1 board in the Arduino IDE Board Manager. It uses the standard Wire library alongside Adafruit's unified sensor libraries. Crucially, it includes a non-blocking error handler that blinks the onboard LED and halts execution gracefully if the sensor fails to initialize, preventing the ESP32 from entering a silent boot-loop.

Required Libraries: Install Adafruit BME280 Library and Adafruit Unified Sensor via the Library Manager.

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BME280.h>

// Pin Definitions for DOIT ESP32 DEVKIT V1
#define I2C_SDA 21
#define I2C_SCL 22
#define BME_ADDRESS 0x76  // Change to 0x77 if your module has the alternate address
#define ONBOARD_LED 2

Adafruit_BME280 bme;

void setup() {
  Serial.begin(115200);
  pinMode(ONBOARD_LED, OUTPUT);

  // Explicitly initialize I2C with defined pins and 100kHz clock speed
  Wire.begin(I2C_SDA, I2C_SCL, 100000);

  Serial.println(F("Initializing BME280 ESP32 Sensor..."));

  // Error Handling: Check if sensor is found at the specified address
  bool status = bme.begin(BME_ADDRESS, &Wire);
  if (!status) {
    Serial.println(F("ERROR: Could not find a valid BME280 sensor, check wiring, address, sensor ID!"));
    Serial.println(F("SensorID was: 0xFF"));

    // Halt and blink LED to indicate hardware failure visually
    while (1) {
      digitalWrite(ONBOARD_LED, HIGH);
      delay(250);
      digitalWrite(ONBOARD_LED, LOW);
      delay(250);
    }
  }

  Serial.println(F("BME280 Sensor initialized successfully."));
  delay(100); // Allow sensor to stabilize
}

void loop() {
  float temperature = bme.readTemperature();
  float pressure = bme.readPressure() / 100.0F; // Convert Pa to hPa
  float humidity = bme.readHumidity();

  Serial.printf("Temp: %.2f *C | Pressure: %.2f hPa | Humidity: %.2f %%\n", temperature, pressure, humidity);

  delay(2000); // 2-second polling rate prevents sensor self-heating
}

Debugging: "Could not find a valid BME280 sensor"

If your serial monitor outputs the exact string: Could not find a valid BME280 sensor, check wiring, address, sensor ID! followed by SensorID was: 0xFF, your ESP32 is failing to read the sensor's WHO_AM_I register. Here are the first three things to check before rewriting your code:

1. Run an I2C Scanner: Upload a standard Arduino I2C Scanner sketch. If the scanner returns no devices, your issue is physical (wiring, power, or missing pull-ups). If it returns 0x77 but your code is looking for 0x76, you have an address mismatch.
2. Verify Logic Levels: Measure the voltage on the SDA and SCL pins with a multimeter. They should idle at ~3.3V. If they are hovering around 1.5V or 0V, your pull-up resistors are missing or the ESP32 GPIO is damaged.
3. Check for SDA/SCL Swap: Generic breakout boards frequently mislabel SDA and SCL. Swap the wires on GPIO 21 and 22 and re-run the I2C scanner.

Ranked Causes for Initialization Failure

For deeper architectural details on the ESP32's I2C peripheral limitations and FIFO buffer handling, refer to the Espressif ESP32 Technical Reference Manual. For sensor-specific register maps, consult the Bosch BME280 Datasheet.

Extending and Simplifying Your Sensor Build

Once your baseline ESP32 sensor circuit is stable, you will likely want to adapt it for a specific use case. Here is how to scale the project up or strip it down.

How to Extend the Build

• Add an OLED Display: You can wire an SSD1306 128x64 I2C OLED directly to the same GPIO 21/22 bus. The OLED uses address 0x3C, which will not conflict with the BME280. Use the Adafruit_SSD1306 library to render local readings without needing a WiFi connection.
• Implement MQTT for Home Assistant: Add the PubSubClient library to publish the sensor readings to an MQTT broker (like Mosquitto) every 60 seconds. This turns your ESP32 into a native smart-home environmental node.
• Add Deep Sleep: For battery-powered outdoor nodes, use esp_sleep_enable_timer_wakeup() to put the ESP32 into deep sleep for 10 minutes between readings, dropping average current draw from 80mA to under 15µA.

How to Simplify the Build

• Drop the Pressure Requirement: If you only need temperature and humidity, swap the BME280 for an AHT20 or SHT31-D. They are cheaper, use fewer registers, and are less prone to I2C bus lockups in high-humidity environments.
• Switch to 1-Wire: If I2C addressing is causing you endless headaches and you only need temperature, abandon I2C entirely. Use a DS18B20 waterproof probe on a single GPIO pin with one 4.7kΩ pull-up resistor. The 1-Wire protocol is significantly more robust over long cable runs (up to 10 meters) than I2C.

ESP32 Sensor FAQ

Why is my ESP32 sensor reading stuck at 85 degrees or returning NaN?

A stuck reading of exactly 85°C (or sometimes -40°C) usually indicates an I2C bus timeout or a silent register read failure. The BME280 returns default factory reset values when the ESP32 fails to clock the data out properly. NaN (Not a Number) occurs when the Adafruit library receives a 0x00 byte for the humidity registers. Fix this by lowering the I2C clock speed from the default 100kHz to 50kHz in your Wire.begin() statement, and ensure your jumper wires are under 30cm in length to reduce bus capacitance.

Can I connect multiple ESP32 sensors to the same I2C bus?

Yes, but with strict limitations. The I2C protocol allows up to 127 devices, but the BME280 only has two possible hardware addresses (0x76 and 0x77). Therefore, you can only put a maximum of two BME280 sensors on a single standard I2C bus. If you need to monitor three or more distinct zones (e.g., a multi-chamber greenhouse), you must use an I2C multiplexer like the TCA9548A. The multiplexer sits on the main bus and creates 8 virtual I2C channels, allowing you to connect up to eight sensors all set to the same 0x76 address.

How do I stop the ESP32 sensor from self-heating and skewing readings?

The ESP32's dual-core processor and WiFi radio generate significant ambient heat. If your BME280 is mounted on the same breadboard or PCB less than 2 inches from the ESP32 chip, your temperature readings will skew 1.5°C to 3.0°C higher than the actual room temperature. To fix this:
1. Physically separate the sensor from the microcontroller using 15cm+ jumper wires.
2. In software, configure the BME280's oversampling settings. Set humidity and temperature oversampling to 1x, and enable the IIR filter.
3. Increase your delay() between readings. Polling the sensor every 100ms keeps the internal measurement circuitry active and generates self-heating. Polling every 2 to 5 seconds allows the silicon to cool between conversions.

For advanced wiring configurations and community-tested pull-up resistor calculations, the Adafruit BME280 Learning Guide remains an excellent supplementary resource.
