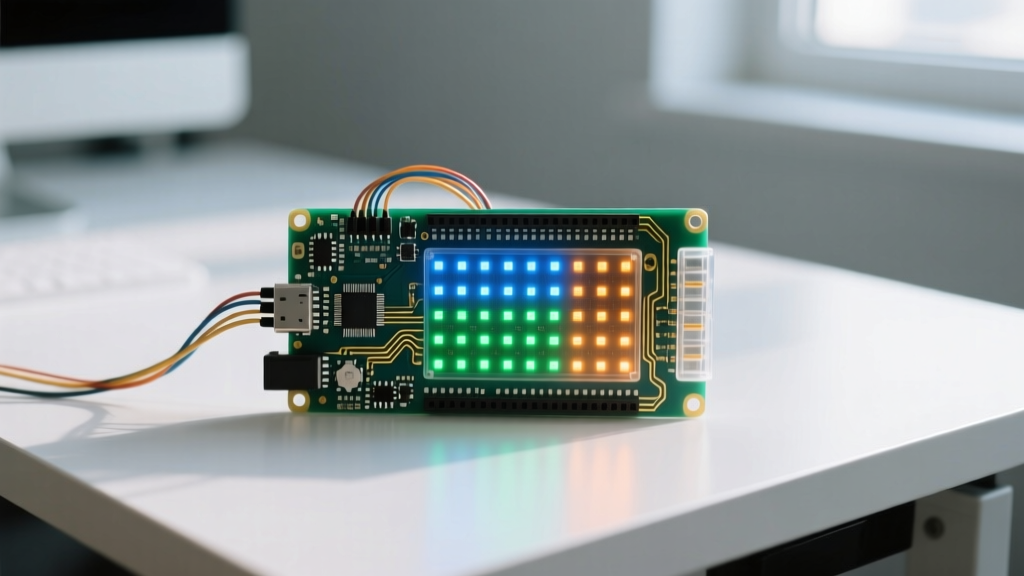

When integrating the Shillehtek MAX7219 8x8 dot matrix LED display module for Arduino into custom art lighting, interactive wall panels, or smart home indicators, treating it purely as a logic component leads to burned-out voltage regulators and visible flicker. While it communicates via simple SPI, the underlying physics of multiplexed LED arrays demand proper power delivery, thermal management, and dimming strategies. This guide bridges the gap between microcontroller logic and lighting circuit design, ensuring your matrix arrays run reliably at scale.
Circuit Impact Math: Inrush, Multiplexing, and Power Delivery
To size a power supply for multiple Shillehtek modules, you must account for the MAX7219’s multiplexing architecture. The IC does not power all 64 LEDs simultaneously. It scans one row at a time at a 1/8th duty cycle.
DC Inrush Current Calculation:
Each Shillehtek module includes a 10µF electrolytic and a 100nF ceramic bypass capacitor. Daisy-chaining four modules yields roughly 40µF of bulk capacitance on the 5V rail. When your power supply ramps from 0V to 5V in approximately 1ms, the DC inrush current is calculated as:
I = C × (dV / dt) = 40µF × (5V / 0.001s) = 200mA
While 200mA won't trip a mains breaker, it is more than enough to trip the polyfuse on an Arduino Uno’s USB port or a weak 5V phone charger. Always power the matrix VCC directly from a dedicated 5V switching power supply (like a Mean Well LRS-50-5), sharing only the GND and logic pins with the Arduino.
Lumens, Efficacy, and Dimmer/Driver Compatibility
Using LED matrices for ambient or accent lighting requires understanding their luminous efficacy compared to standard illumination. The Shillehtek modules typically use 3mm diffused red LEDs (forward voltage ~1.8V).
Lumens/Watts Equivalence and Efficacy Context
| Light Source Type | Typical Efficacy (lm/W) | Total Output (Approx) | Application Context |
|---|---|---|---|
| Shillehtek 8x8 Red Matrix (4 modules) | 15 - 25 lm/W | 12 - 18 Lumens | Pixel art, status indicators, dark-room accent |
| Standard 5mm Red Indicator LED | 20 - 30 lm/W | 2 - 4 Lumens | Panel indicators, breadboard debugging |
| Modern Warm White LED Strip (2835 SMD) | 100 - 130 lm/W | 800+ Lumens/meter | Under-cabinet lighting, primary room illumination |
Note: The low lumen output of the matrix is offset by its high pixel density. It is an information display, not a room illuminator.
Dimmer Compatibility: Trailing Edge vs. DC PWM
A common mistake in DIY lighting is attempting to use a standard AC wall dimmer to control the 5V power supply feeding the matrices. Never use an AC trailing-edge or leading-edge dimmer on a switching 5V DC power supply. The chopped AC waveform will cause the PSU’s internal rectifier and smoothing capacitors to overheat, fail, or output erratic DC voltages that will instantly destroy the MAX7219 IC.
Instead, use a DC PWM dimmer driver. If you are building a custom MOSFET dimmer board (using an IRLZ44N logic-level MOSFET) to dim the entire array via the Arduino, you must respect the minimum load requirements of your power supply.
- Minimum Load Check: Many switching PSUs require a 10% to 20% minimum load to regulate voltage properly. If you dim a 4-module array down to 1% brightness via a main-line MOSFET, the PSU may drop out of regulation, causing voltage ripple and erratic SPI behavior.
- The Fix: Do not dim the main 5V rail. Keep the PSU at 100% duty cycle and use the MAX7219’s internal hardware dimming registers (detailed in the troubleshooting section below).
Troubleshooting Flicker, Heat, and Enclosure Constraints
Why Flicker Happens (And The Fix)
Flicker in the Shillehtek MAX7219 module usually manifests as a rolling bar or a strobe effect when viewed through a smartphone camera. This is caused by beat frequencies.
The MAX7219 has an internal oscillator running at ~800kHz, scanning the 8 rows to create a hardware refresh rate of roughly 1000Hz. If you attempt to dim the display by rapidly toggling the VCC pin or using a software PWM routine on a main power MOSFET at a low frequency (e.g., 100Hz to 500Hz), the software PWM frequency interferes with the hardware multiplexing frequency.
analogWrite() or software PWM on the power rail to dim the matrix. Instead, use the hardware intensity register built into the MAX7219. If using the LedControl library, use lc.setIntensity(0, 8); (where 8 is a value from 0-15). This adjusts the internal current sink duty cycle safely without causing beat-frequency flicker.
Heat and Enclosure Constraints
While the LEDs themselves run cool, the MAX7219CWG IC dissipates significant heat. The IC acts as a constant-current sink. If your 5V supply is actually delivering 5.2V (common with uncalibrated bench supplies), and the LED forward voltage is 1.8V, the IC must drop the remaining 3.4V.
At a peak row current of 160mA, the instantaneous power dissipation is P = 3.4V × 0.160A = 0.54W. Because it pulses, the average dissipation is lower, but in a sealed, 3D-printed PLA enclosure, ambient temperatures can easily exceed PLA’s glass transition temperature of ~55°C. This causes the enclosure to warp, pushing the diffuser acrylic out of alignment.
Design Rule: If enclosing more than two Shillehtek modules in a sealed box, drop the PSU voltage to exactly 4.8V - 5.0V using a buck converter, and ensure the enclosure has at least two 10mm passive ventilation holes near the ICs, or print the backplate in PETG/ABS.
Frequently Asked Questions
Can I daisy-chain more than four Shillehtek MAX7219 modules on a single Arduino 5V pin?
No. The Arduino Uno’s onboard 5V linear regulator (typically an NCP1117 or similar) can safely supply about 500mA to 800mA of continuous current, assuming it is fed via the barrel jack with 7-9V. A chain of five or more matrices can easily pull peak currents exceeding 1A during high-brightness, full-white (all-LEDs-on) animations, which will overheat the Arduino’s regulator and trigger its internal thermal shutdown. Always inject 5V directly into the matrix VCC pins from an external power supply, bypassing the Arduino's regulator entirely.
Why does my MAX7219 8x8 dot matrix display show random garbage characters on startup?
This is a classic SPI initialization race condition. When power is applied, the MAX7219’s internal registers power up in a random, undefined state. If the Arduino’s boot sequence is slow, or if the CS (Chip Select) line floats during the power-on ramp, the IC may latch onto electrical noise on the DIN/CLK lines, interpreting it as valid data. The fix is twofold: add a 10kΩ pull-down resistor on the CS line to hold it LOW (inactive) during boot, and ensure your setup() function explicitly clears the display and sets the shutdown register to "normal operation" immediately upon boot.
How do I adjust the brightness of the Shillehtek MAX7219 without using external PWM dimmers?
You adjust brightness via the MAX7219’s internal hardware register. The IC contains a digital-to-analog converter that controls the peak current of the segment drivers. By sending a command to the Intensity Register (Address 0x0A), you can select one of 16 discrete brightness levels. This method is vastly superior to external PWM because it maintains the 1000Hz multiplexing refresh rate, eliminating camera flicker while reducing overall power consumption and IC heat dissipation proportionally.
