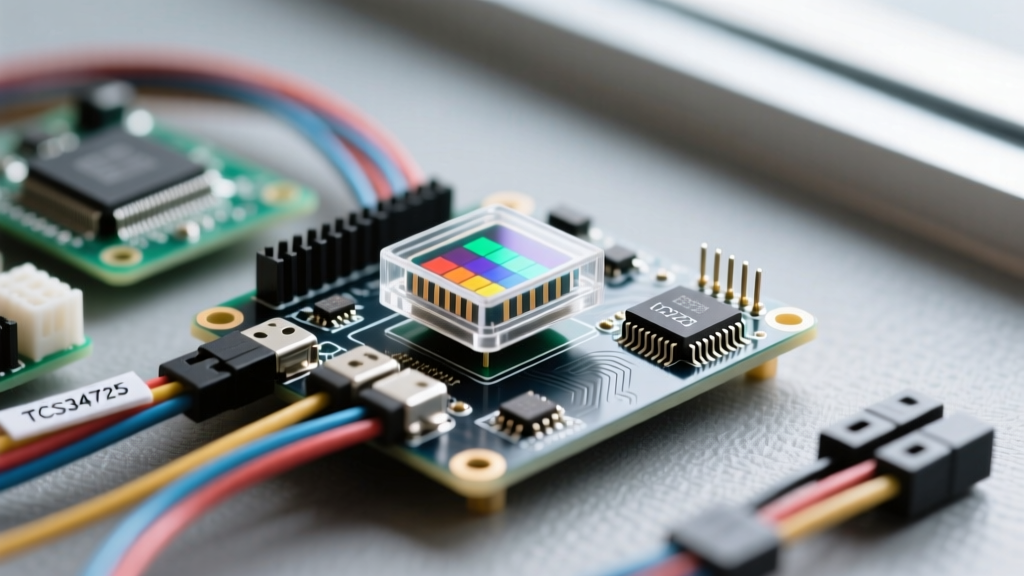

How to Wire and Calibrate an I2C RGB Color Sensor (TCS34725)

The Sensing Principle: How an RGB Color Sensor Works

Modern I2C RGB color sensors, like the ubiquitous AMS OSRAM TCS34725, rely on a specialized 3x4 photodiode array overlaid with red, green, blue, and clear (unfiltered) optical filters. When photons strike these diodes, they generate a proportional photocurrent. An internal integrating analog-to-digital converter (ADC) accumulates this charge over a user-defined integration time, converting the analog current directly into a 16-bit digital value for each color channel. This integration happens entirely on-chip, meaning the microcontroller is completely isolated from the analog domain.

Unlike older frequency-output sensors (such as the TCS3200) that output a variable-frequency square wave requiring microcontroller timer interrupts and pulse-width measurements, the TCS34725 outputs strictly digital data over an I2C bus. The microcontroller simply requests the contents of the 16-bit data registers. Because the sensor handles the analog-to-digital conversion internally, you will never measure an analog voltage or a raw current on the output pins; you are only reading digital register counts ranging from 0 to 65535.

Hardware Pinout and I2C Wiring Guide

Most hobbyist breakouts (from Adafruit, DFRobot, or SparkFun) include an onboard 3.3V LDO voltage regulator and I2C pull-up resistors, allowing you to power them directly from a 5V Arduino or a 3.3V ESP32. The bare IC, however, strictly requires a 2.7V to 3.6V supply.

From Raw Counts to Physical Units: The Math and Calibration

The raw output of the sensor consists of four 16-bit unsigned integers: R, G, B, and C (Clear). These numbers represent accumulated photon counts, not physical units like Lux or Kelvin. To make this data useful for color sorting or ambient light measurement, you must apply scaling math.

1. Distance-Independent Color Normalization

Raw counts drop exponentially as the sensor moves further from the target. To identify a color regardless of distance or ambient brightness, normalize the RGB channels against the Clear channel. This maps your data to a 0.0 to 1.0 physical color space:

• R_norm = R_raw / C_raw
• G_norm = G_raw / C_raw
• B_norm = B_raw / C_raw

Calibration Note: If C_raw is 0 (pitch black), your code must catch this to prevent a divide-by-zero error. Return 0.0 for all normalized channels in this edge case.

2. Correlated Color Temperature (CCT) in Kelvin

To estimate the color temperature of a light source (e.g., distinguishing 2700K warm white from 6000K daylight), use the simplified AMS application note formula based on the red-to-blue ratio:

CCT = 3810 * (R_raw / B_raw) + 1394

This approximation works well for blackbody radiators and standard white LEDs, but will yield nonsensical numbers if pointed at narrow-band monochromatic light (like a pure green laser).

3. Illuminance (Lux) Calculation

To convert the Clear channel into physical Lux, you must account for the integration time (IT) and the analog gain. According to the AMS OSRAM TCS34725 datasheet, the counts per second (CPS) is calculated as:

CPS = C_raw / (IT_ms / 1000)

From there, Lux is derived using a device-specific scaling factor (typically around 0.013 to 0.015 depending on the aperture and package):

Lux = CPS * 0.014 (Verify this constant against your specific breakout board's optical window).

Interference, Ambient Light, and Edge Cases

Color sensors are highly susceptible to environmental noise. If your readings are erratic, check these three common interference sources:

1. 50/60Hz Mains Flicker: Fluorescent tubes and cheap PWM-driven LED bulbs flicker at twice the AC mains frequency (100Hz or 120Hz). If your sensor's integration time is not an exact multiple of this period, the ADC will sample different parts of the flicker cycle, causing massive variance in raw counts. Fix: Set your integration time to 101ms or 700ms to average out multiple full AC cycles.
2. Specular Reflection (ADC Saturation): If you place the sensor too close to a glossy or metallic surface, the onboard white LED reflects directly back into the photodiodes. This causes the ADC to saturate, maxing out at 65535 on all channels. Fix: Increase the physical standoff distance to at least 15mm, or lower the analog gain from 60x down to 1x or 4x.
3. Infrared (IR) Bleed: While the TCS34725 features an IR-blocking filter, extreme IR sources (direct sunlight, incandescent halogen bulbs) can still overwhelm the filter and skew the Red channel high. Fix: For outdoor or high-IR environments, rely on the normalized RGB ratios rather than raw counts, as the IR bleed will proportionally affect the Clear channel and cancel out during normalization.

Frequently Asked Questions

Why is my RGB color sensor reading max 65535 on all channels?

A reading of 65535 means the internal 16-bit ADC is saturated. The photodiodes are receiving more light than they can integrate within the configured time window. This usually happens when the sensor is placed too close to a highly reflective white surface with the onboard LED enabled, or when the analog gain is set too high (e.g., 60x) in a brightly lit room. To fix this, reduce the gain setting in your initialization code to 1x or 4x, or shorten the integration time from 700ms down to 2.4ms.

Can I use an RGB color sensor to measure liquid turbidity or pH?

No. An RGB color sensor measures surface reflectance and ambient light spectra, not light scattering or chemical absorption. Turbidity requires a nephelometric setup (measuring light scattered at a 90-degree angle), which a surface-mount reflectance sensor cannot do accurately. While you could theoretically measure the color shift of a pH indicator dye, the Adafruit Color Sensor Guide notes that without a controlled, light-sealed cuvette chamber and a calibrated reference blank, ambient light leakage will render pH colorimetry entirely unreliable.

How do I wire multiple I2C RGB color sensors to one Arduino?

Because the TCS34725 lacks hardware address-selection pins, every unit shares the exact same I2C address (0x29). You cannot wire them in parallel on the same SDA/SCL bus. The standard engineering solution is to use an I2C multiplexer IC, such as the NXP TCA9548A. The multiplexer sits on the main I2C bus and provides 8 isolated sub-buses. Your microcontroller sends a command to the multiplexer to open a specific channel, communicates with the sensor on that channel, and then switches to the next channel.

What is the difference between the TCS3200 and TCS34725 RGB color sensors?

The TCS3200 is an older, frequency-based sensor. It outputs a 5V square wave where the frequency (in Hz) is proportional to light intensity. Your microcontroller must use hardware timers and interrupts to measure the pulse width, which consumes significant CPU cycles and requires 5V logic. The TCS34725 is a modern digital sensor that handles integration internally and outputs 16-bit data over a 3.3V-compatible I2C bus. For any new ESP32 or modern Arduino project, the TCS34725 is the superior choice due to its lower power consumption, higher resolution, and non-blocking I2C reads.
