The multimeter capacitor setting (typically marked with the -| |– symbol or the letter F) measures a component's ability to store electrical charge in Farads. To get an accurate reading, you must completely discharge the capacitor first, isolate it from the circuit, and connect the probes directly to the terminals while the meter applies an internal test current. A good reading falls within the manufacturer's stated tolerance (usually ±5% to ±20% of the printed value), while a reading of 'OL' (Open Loop) indicates a dead, internally broken capacitor.
Meter Setup and Probe Placement for Capacitance
Unlike measuring voltage, where you probe a live circuit, capacitance is a passive measurement. Your multimeter acts as both the power source and the sensor. It applies a known constant current to the capacitor and measures the time it takes for the voltage to ramp up (using the formula C = I × (dt/dV)), or it applies an AC signal and measures impedance. Because of this, the setup is strict.
Step-by-Step Meter Configuration
- De-energize and Discharge: Turn off the equipment, unplug it, and safely bleed the capacitor's stored energy. Verify it reads 0.00V on the DC voltage setting before switching to capacitance.
- Isolate the Component: Desolder or disconnect at least one leg of the capacitor from the PCB. Measuring in-circuit will yield false readings because the meter will measure the parallel capacitance of surrounding components and PCB traces.
- Dial Position: Rotate the selector to the capacitance setting (
-| |–). On meters without a dedicated setting, press the 'Select' or 'Mode' button to toggle from resistance/continuity to capacitance. - Lead Jacks: Plug the black lead into
COM. Plug the red lead into theVΩjack (or the dedicatedCx/µFjack if your specific model, like some older Extech units, requires it). - Zero the Leads: Touch the probe tips together. For high-precision work (measuring picofarads), note this baseline parasitic capacitance (usually 0.1nF to 0.5nF) and subtract it from your final reading, or use the meter's 'Relative' (REL) mode to zero it out.

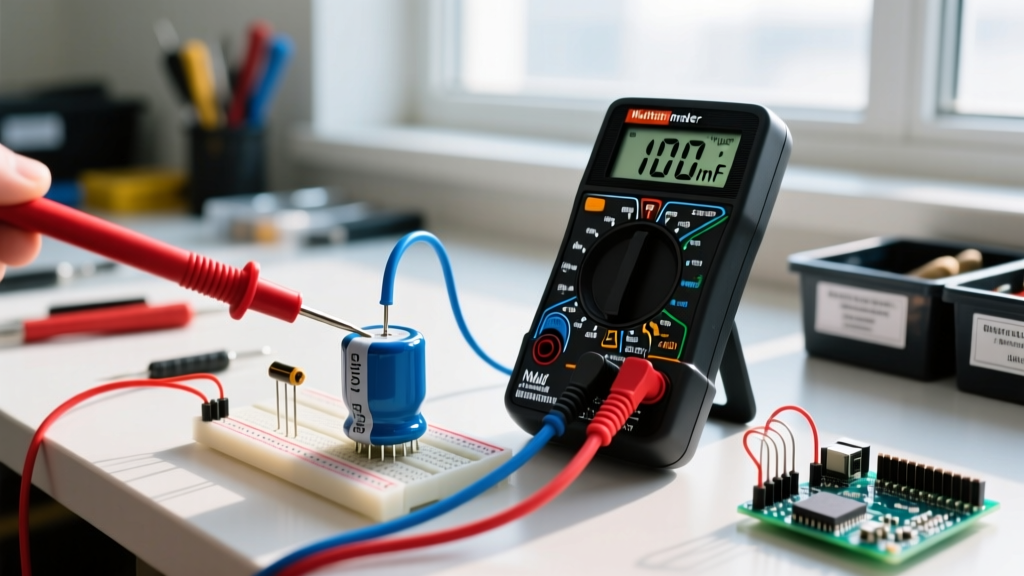

- Probe Placement: Touch one probe to each terminal. For non-polarized capacitors (ceramic, film, motor run), polarity does not matter. For polarized electrolytics, red to the anode (+) and black to the cathode (-) is best practice, though most modern DMMs will read them either way.
Understanding CAT Ratings for Mains-Adjacent Caps
If you are testing HVAC motor run capacitors or power supply filter capacitors, you are working near mains-derived circuits. According to Fluke's safety guidelines, your meter and test leads must carry a minimum CAT III 600V rating for HVAC and appliance work, or CAT IV 600V if testing at the service entrance or outdoor compressor disconnect. The CAT rating protects you from transient voltage spikes (inductive kickback) that can occur if a capacitor fails short while connected to the line.
Expected Readings: Good vs. Bad Capacitor Values
Capacitors rarely fail exactly at their printed nominal value. They degrade, dry out, or short. Furthermore, manufacturing tolerances vary wildly depending on the dielectric material. An aluminum electrolytic capacitor might be perfectly 'good' at 20% below its printed value, while a motor run capacitor at 10% below its value will cause an HVAC compressor to overheat and trip the breaker.
The table below outlines expected numerical readings for common capacitor types you will encounter on the bench or jobsite.
| Capacitor Type & Application | Nominal Value | Standard Tolerance | Acceptable Min Reading | Acceptable Max Reading | Failure Mode / Bad Reading |
|---|---|---|---|---|---|
| Motor Run (HVAC Fan/Compressor) | 5.0 µF | ±5% or ±6% | 4.70 µF | 5.30 µF | < 4.5 µF (Weak) or 'OL' (Open) |
| Aluminum Electrolytic (PSU Filter) | 470 µF | -20% / +80% | 376 µF | 846 µF | < 350 µF (Dried out) or 0.00 Ω (Short) |
| Ceramic X7R (Decoupling/Bypass) | 0.1 µF (100nF) | ±10% or ±15% | 0.085 µF | 0.115 µF | 'OL' (Cracked) or near 0 (Shorted) |
| Silver Mica / NP0 (RF Oscillator) | 22 pF | ±2% or ±5% | 20.9 pF | 23.1 pF | Any reading > 25 pF (Dielectric breakdown) |
Note: When measuring large electrolytics (e.g., 1000µF+), the meter's internal test current is low. It may take 5 to 15 seconds for the reading to stabilize on the LCD. Do not remove the probes until the value locks.
Common Mistakes That Give Misleading Readings
If your capacitor is failing in the circuit but passes the multimeter test on the bench, you have likely fallen victim to one of the limitations of standard DMM capacitance testing.
1. Measuring In-Circuit (Parallel Capacitance)
PCB traces, adjacent ICs, and parallel bypass capacitors create a massive web of parasitic capacitance. If you probe a 0.1µF ceramic capacitor while it is still soldered to the board, your meter might read 1.4µF. You aren't measuring the component; you are measuring the entire localized power rail. Always lift at least one leg.
2. Ignoring Parasitic Lead Capacitance
Standard 3-foot test leads act as a weak capacitor themselves, typically introducing 30pF to 50pF of stray capacitance. If you are trying to measure a 22pF oscillator capacitor, your meter will read 60pF and you will mistakenly throw away a perfectly good component. Use the REL (Relative) button to zero out the leads before testing small values, or use short, rigid SMD tweezers probes.
3. The 'Good Capacitance, High ESR' Trap
This is the most dangerous mistake for electronics repair technicians. A multimeter's capacitance setting applies a very low-frequency or DC-ramp test. An old, abused electrolytic capacitor might still show 460µF on a 470µF nominal cap, tricking you into thinking it is healthy. However, its Equivalent Series Resistance (ESR) might have spiked from a normal 0.05Ω to 4.0Ω due to dried electrolyte. Under high-frequency switching loads (like in a PC motherboard VRM or a switch-mode power supply), that high ESR will cause the capacitor to overheat and vent. A standard DMM cannot measure ESR. For power supply diagnostics, you must use a dedicated ESR meter or an oscilloscope to check ripple voltage.
When a Multimeter Isn't Enough: Advanced Testing
While the multimeter capacitor setting is perfect for verifying motor run caps, checking for dead shorts, and sorting bulk components, it has limits. According to Electronics Tutorials, a capacitor's true behavior is defined by its impedance across a frequency spectrum, not just its static capacitance.
If you are troubleshooting high-frequency switching circuits, audio crossovers, or precision timing oscillators, consider upgrading your test gear:
- ESR Meter: Essential for switching power supplies. It injects a 100kHz AC signal to measure internal resistance without needing to desolder the component.
- LCR Meter: Devices like the Keysight U1733C or DER EE DE-5000 apply selectable AC frequencies (100Hz, 1kHz, 100kHz) to measure Capacitance (C), Dissipation Factor (D), and exact ESR, giving you a complete health profile of the dielectric.
For 90% of DIY home electrical and basic bench repair tasks, however, a quality True-RMS multimeter with a dedicated capacitance jack, proper lead zeroing, and strict adherence to discharge protocols will give you the exact data you need to make the right replacement call.
