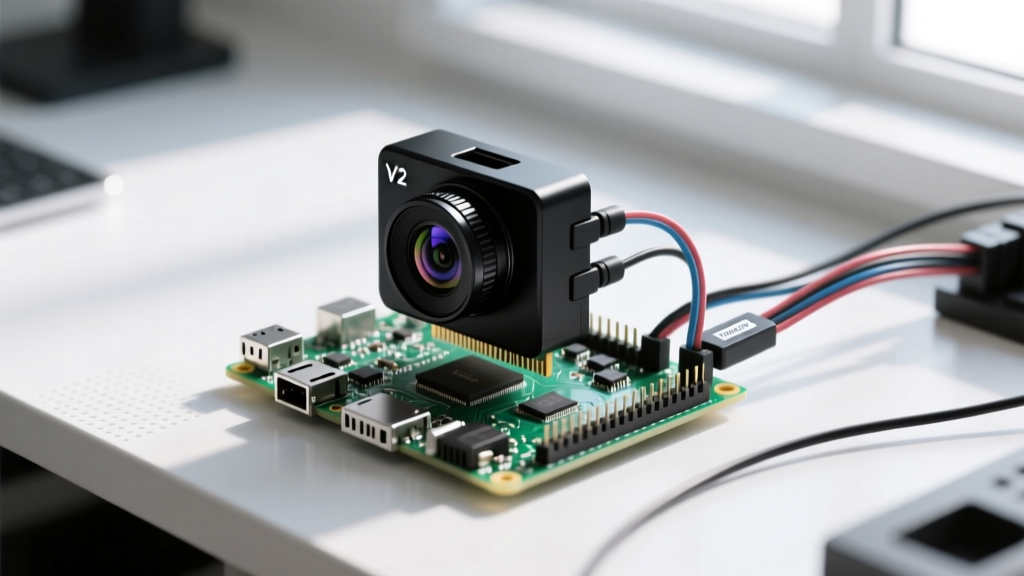

The Raspberry Pi Camera Module V2 (based on the Sony IMX219 sensor) remains a staple for embedded vision projects due to its 8-megapixel resolution, low cost, and native CSI-2 interface. However, the software landscape has shifted entirely. If you are deploying this camera in 2026 on Raspberry Pi OS Bookworm or later, the legacy picamera Python library is fully deprecated. You must use the modern picamera2 library built on top of libcamera.
This guide provides the exact hardware specifications, the 15-pin CSI-2 electrical pinout, production-ready Python code with error handling, and a systematic debugging framework for when the sensor fails to initialize.
Hardware Specifications & Compatibility Matrix
Before wiring up your board, it is critical to understand where the V2 module sits in the current Raspberry Pi camera ecosystem. The V2 uses a rolling shutter, which makes it unsuitable for high-speed machine vision but perfect for general surveillance, timelapses, and basic computer vision.
| Module Variant | Sensor | Resolution & Pixel Size | Shutter Type | Approx. Price (2026) | Best Use Case |
|---|---|---|---|---|---|
| Camera V2 | Sony IMX219 | 8MP (3280 × 2464) / 1.12µm | Rolling | $25 - $30 | Timelapse, basic CV, streaming |
| Camera V1.3 (Legacy) | Omnivision OV5647 | 5MP (2592 × 1944) / 1.4µm | Rolling | $15 (Used/NOS) | Legacy replacements only |
| HQ Camera | Sony IMX477 | 12.3MP (4056 × 3040) / 1.55µm | Rolling | $50 (lens extra) | Macro, telescopic, custom optics |
| Global Shutter (GS) | Sony IMX296 | 1.58MP (1456 × 1088) / 3.45µm | Global | $50 - $60 | High-speed motion, industrial CV |
Physical Installation & 15-Pin CSI-2 Pinout
The physical connection between the Pi and the Camera V2 relies on a 15-pin, 1mm-pitch Flat Flex Cable (FFC). The most common point of hardware failure is damaging the fragile plastic locking collar on the Pi's CSI port or misaligning the differential data pairs.
Parts List
- Compute Board: Raspberry Pi 4 Model B (4GB minimum for smooth OpenCV pipelines)
- Camera: Raspberry Pi Camera Module V2 (Sony IMX219)
- Cable: 15-pin to 15-pin 1mm pitch FFC (use the included 300mm cable, or a 150mm cable for compact enclosures)
- Software: Raspberry Pi OS Bookworm (64-bit) with
python3-picamera2installed viasudo apt install.
CSI-2 Pin Mapping Table
Unlike standard GPIO, the CSI-2 interface uses high-speed differential signaling (MIPI D-PHY) alongside standard I2C for sensor configuration. Here is the exact electrical mapping of the 15-pin FFC connector:
| Pin | Function | Signal Type | Description / Notes |
|---|---|---|---|
| 1 | GND | Power | Ground reference |
| 2 | SDA1 | I2C Data | Camera I2C data line (internal pull-ups on Pi) |
| 3 | SCL1 | I2C Clock | Camera I2C clock line |
| 4 | VCC | Power | 3.3V Power (Sensor digital core) |
| 5 | VCC | Power | 3.3V Power (Sensor analog/IO) |
| 6 | GND | Power | Ground reference |
| 7 | CAM_D0_N | MIPI Data | CSI Data Lane 0 (Negative) |
| 8 | CAM_D0_P | MIPI Data | CSI Data Lane 0 (Positive) |
| 9 | GND | Shield | Ground shield between differential pairs |
| 10 | CAM_D1_N | MIPI Data | CSI Data Lane 1 (Negative) |
| 11 | CAM_D1_P | MIPI Data | CSI Data Lane 1 (Positive) |
| 12 | GND | Shield | Ground shield |
| 13 | CAM_CLK_N | MIPI Clock | CSI Clock Lane (Negative) |
| 14 | CAM_CLK_P | MIPI Clock | CSI Clock Lane (Positive) |
| 15 | GND | Power | Ground reference |
Python Code: Capture with Picamera2
The following script initializes the Sony IMX219 sensor, configures it for a maximum-resolution still capture, and saves the output. It includes robust error handling to catch hardware initialization failures, which is critical for headless deployments.
Target Environment: Raspberry Pi 4B / 5, Raspberry Pi OS Bookworm (64-bit), Python 3.11+.
import time
import logging
from picamera2 import Picamera2
# Configure logging for headless debugging
logging.basicConfig(
level=logging.INFO,
format='%(asctime)s - %(levelname)s - %(message)s'
)
def capture_high_res_image(output_path="imx219_capture.jpg"):
picam2 = None
try:
logging.info("Initializing Picamera2 and probing I2C/CSI bus...")
picam2 = Picamera2()
# Create a configuration optimized for still capture (full 8MP resolution)
config = picam2.create_still_configuration()
picam2.configure(config)
picam2.start()
logging.info("Camera started. Allowing 2.0s for AEC/AGC convergence...")
time.sleep(2.0) # Crucial for auto-exposure to settle on the IMX219
# Capture and write to disk
picam2.capture_file(output_path)
logging.info(f"Success: Image saved to {output_path}")
except RuntimeError as e:
error_msg = str(e)
if "Camera is not connected" in error_msg or "no cameras available" in error_msg:
logging.critical("HARDWARE FAULT: Camera not detected on CSI/I2C bus.")
logging.critical("Check FFC ribbon seating, collar lock, and I2C traces.")
else:
logging.error(f"Runtime Error during capture: {error_msg}")
except Exception as e:
logging.error(f"Unexpected system error: {e}")
finally:
# Ensure the camera pipeline is torn down to release the ISP hardware
if picam2 is not None and picam2.started:
picam2.stop()
logging.info("Camera pipeline stopped and resources released.")
if __name__ == "__main__":
capture_high_res_image()
Debugging: "Camera is not connected" & Common Failures
When working with the Camera V2, the most frequent roadblock is the OS failing to enumerate the sensor on the I2C bus, resulting in a silent failure or a hard crash.
The Exact Error Strings
If your hardware or software stack is misconfigured, libcamera will throw one of two specific errors:
RuntimeError: Camera is not connected(Thrown by the Pythonpicamera2wrapper)ERROR: *** no cameras available ***(Thrown by the underlying C++libcameraframework)
The First 3 Things to Check
Before rewriting your code or replacing the sensor, execute this diagnostic triage:
- Verify OS-Level Enumeration: Run
rpicam-hello --list-camerasin the terminal. If the IMX219 is physically connected and powered, you will see:0 : imx219 [3280x2464 10-bit RGGB] (/base/axi/pcie@120000/rp1/i2c@80000/imx219@10). If it returns nothing, the issue is purely hardware or firmware. - Inspect FFC Orientation and Seating: Power down the Pi. Disconnect the FFC. Verify the silver contacts are facing the correct direction (towards the Pi PCB). Re-insert the cable until it bottoms out, then press the locking collar down evenly on both sides.
- Test I2C Continuity: The IMX219 requires I2C (Pins 2 and 3 on the FFC) to report its presence to the Pi. If the camera powers on (gets slightly warm) but isn't detected, use a multimeter in continuity mode to check for micro-tears on the outermost I2C traces of the ribbon cable. FFC cables frequently break at the fold points.
Ranked Causes for Detection Failure
| Rank | Root Cause | Fix / Action |
|---|---|---|
| 1 | FFC Ribbon inserted backward or not fully seated. | Reseat cable. Silver contacts must face the board. Ensure collar is locked. |
| 2 | Legacy picamera stack enabled in config.txt. |
Run sudo raspi-config, go to Interface Options > Legacy Camera, and Disable it. Reboot. |
| 3 | Torn I2C trace on the FFC cable. | Replace the 15-pin FFC cable. They are highly susceptible to fatigue cracking. |
| 4 | Insufficient power supply (Brownout). | The IMX219 draws ~250mA during initialization. Ensure you are using an official 3A (Pi 4) or 5A (Pi 5) USB-C power supply. |
Extending and Simplifying the Build
Depending on your project requirements, you may not need a full Python pipeline, or you may need to push the V2 module into real-time computer vision territory.
How to Simplify: Drop Python Entirely
If you only need to capture images for a basic timelapse or cron-jobbed surveillance script, skip Python and use the native C++ CLI tools. They are significantly faster and use less RAM.
# Capture a single 8MP JPEG with auto-exposure
rpicam-still -o test_capture.jpg --width 3280 --height 2464 --timeout 2000
# Record a 10-second 1080p30 H.264 video
rpicam-vid -o video_stream.h264 --width 1920 --height 1080 --framerate 30 -t 10000
How to Extend: OpenCV Integration
To use the Camera V2 for object detection (e.g., YOLOv8 or Haar Cascades), you need to pass frames directly into OpenCV as NumPy arrays without writing to disk. picamera2 handles this efficiently via the capture_array() method.
import cv2
from picamera2 import Picamera2
picam2 = Picamera2()
# Configure for a faster, lower-res video pipeline (1080p)
video_config = picam2.create_video_configuration(main={"size": (1920, 1080)})
picam2.configure(video_config)
picam2.start()
while True:
# Grab the frame as a NumPy array (BGR format for OpenCV)
frame = picam2.capture_array()
# Insert your CV pipeline here (e.g., cv2.Canny, model inference)
gray = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
cv2.imshow("IMX219 Live Feed", gray)
if cv2.waitKey(1) & 0xFF == ord('q'):
break
picam2.stop()
cv2.destroyAllWindows()
For deeper architectural details on the libcamera framework and ISP tuning files for the IMX219, refer to the official Picamera2 Python Manual and the Raspberry Pi Camera Hardware Documentation. If you are building custom enclosures, remember that the V2 module's PCB mounting holes are spaced exactly 21mm apart, requiring M2.5 standoffs for secure chassis mounting.
