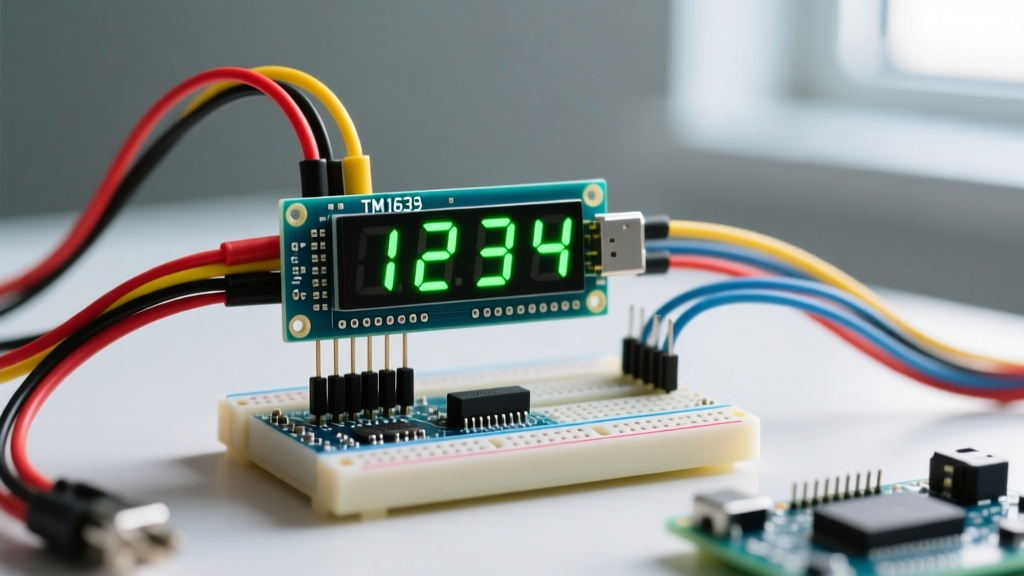

Wiring a Four Digit Seven Segment Display to Arduino: TM1637 Guide

To connect a four digit seven segment display to an Arduino without burning through your microcontroller's I/O pins, use a TM1637 driver module. It requires only 2 digital pins (CLK and DIO), handles LED multiplexing internally via a dedicated chip, and costs under $4. Direct wiring requires 12 pins and complex CPU timer interrupts; the TM1637 abstracts this into simple I2C-like commands.

The Hardware Decision Matrix: Which Driver Module to Pick

Before buying parts, you need to choose the right driver architecture. Hobbyists typically face four options when driving a four digit seven segment display. Here is the decision path to select the correct module for your bench.

Decision Tree

• If you need to daisy-chain 3+ displays on the same bus → Choose MAX7219 (SPI).
• If you are already using a complex I2C bus with strict timing and address management → Choose HT16K33.
• If you just need a standalone clock, timer, or sensor readout and want to save pins and money → Default Pick: TM1637 4-Digit Module (0.56", Red, Common Anode).

For the remainder of this guide, we are building with the TM1637 default pick. It is the undisputed workhorse for standalone Arduino readouts.

Parts List & Spec Sheet

Ensure you have the exact variants listed below. Buying "generic" 7-segment displays without the backpack PCB will result in missing current-limiting resistors and the TM1637 IC itself.

Pin Mapping & Wiring Steps

The TM1637 uses a custom two-wire protocol that mimics I2C but does not support standard I2C addressing or hardware ACKs. Do not connect these to the dedicated SDA/SCL pins (A4/A5 on the Uno) unless you specifically want to route them there for physical convenience; any standard digital pins will work.

Step-by-Step Wiring Procedure

1. De-energize the board: Unplug the Arduino USB cable before making connections to prevent accidental shorting of the 5V rail.
2. Seat the module: Place the TM1637 module on the breadboard. If the header pins are not pre-soldered, solder them now using a 350°C iron and rosin-core flux. Cold joints here cause intermittent flickering.
3. Connect Power: Run the Red wire from the module VCC to the Arduino 5V pin. Run the Black wire from GND to Arduino GND.
4. Connect Data: Run the Yellow wire from DIO to Arduino Pin 3. Run the Orange wire from CLK to Arduino Pin 2.
5. Verify routing: Ensure the CLK and DIO wires are not crossed. While the software can technically swap them if you change the pin definitions, keeping CLK on the lower pin number is standard practice for schematic readability.

Complete Compilable Code with Error Handling

This code targets the Arduino Uno R3 / Nano v3 (ATmega328P). It relies on the widely adopted TM1637Display library by Avishay Orpaz. Install it via the Arduino IDE Library Manager before compiling.

The code includes a custom hardware health check. Because the TM1637 protocol lacks a true hardware ACK (unlike standard Wire I2C), we verify the DIO line state on boot to catch dead modules or unpowered breadboard rails before entering the main loop.

#include <Arduino.h>
#include <TM1637Display.h>

// --- PIN DEFINITIONS ---
#define CLK_PIN 2
#define DIO_PIN 3

// Initialize the display object
TM1637Display display(CLK_PIN, DIO_PIN);

// Custom error handling function for bit-banged protocol
void checkDisplayHealth() {
  pinMode(DIO_PIN, INPUT_PULLUP);
  delayMicroseconds(50);
  // If the module is unpowered or dead, the internal circuitry may pull DIO low
  if (digitalRead(DIO_PIN) == LOW) {
    Serial.println("ERR: DIO_LINE_STUCK_LOW");
    Serial.println("Halt: Check VCC, GND, and module integrity.");
    while(true) {
      delay(1000); // Infinite loop to halt execution safely
    }
  }
  pinMode(DIO_PIN, OUTPUT); // Restore for library use
}

void setup() {
  Serial.begin(115200);
  while (!Serial) { delay(10); }

  Serial.println("Initializing TM1637...");
  checkDisplayHealth();

  // Set brightness (0-7). 7 is max, but draws ~120mA.
  // Use 4 for USB-powered projects to avoid brownouts.
  display.setBrightness(4, true);

  // Clear the display on boot
  display.clear();
  delay(500);
}

void loop() {
  // Example 1: Count up from 0 to 9999
  for (int i = 0; i < 10000; i++) {
    display.showNumberDec(i, false); // false = no leading zeros
    delay(50);
  }

  display.clear();
  delay(1000);

  // Example 2: Show temperature with decimal point simulation
  // TM1637 doesn't have independent decimal points per digit in standard lib,
  // but we can use the colon (bit 7 of the second digit) for time/temp formats.
  int tempC = 24; // Simulated sensor read

  // Custom segment mapping for "24" with colon on
  uint8_t data[] = { 0x00, 0x00, 0x00, 0x00 };
  data[0] = display.encodeDigit(2);
  data[1] = display.encodeDigit(4) | 0x80; // 0x80 triggers the center colon
  data[2] = display.encodeDigit('C'); // 'C' for Celsius
  data[3] = 0x00; // Blank last digit

  display.setSegments(data);
  delay(3000);
}

Debugging: First Three Things to Check When It Fails

When the display remains blank, outputs garbage characters, or throws the ERR: DIO_LINE_STUCK_LOW string in the Serial Monitor, follow this ranked troubleshooting path. These are the most common failure modes on the workbench.

1. Swapped CLK and DIO Lines (Most Likely)

Symptom: Display is completely blank, no Serial errors, code compiles and runs.

Fix: The TM1637 protocol is strictly directional. If you swapped the yellow and orange wires, the bit-bang timing will fail silently. Swap the physical wires on the breadboard, or update the #define macros in the code to match your physical routing.

2. USB Brownout / VCC Voltage Drop

Symptom: Display flickers randomly, or the Arduino resets itself when the display shows "8888".

Fix: A four digit seven segment display showing all eights draws approximately 120mA to 160mA. If powered via a low-quality USB cable or an unpowered hub, the Arduino's 5V rail will droop below 4.5V, triggering the ATmega328P's brownout detection (BOD).

• Measure the 5V pin with a multimeter. It must read ≥ 4.7V under load.
• Lower the brightness in code: display.setBrightness(2);
• Use a powered USB hub or a 5V 2A wall adapter.

3. Parasitic Capacitance on Long Wire Runs

Symptom: Garbage characters, missing segments, or the ERR: DIO_LINE_STUCK_LOW error on boot.

Fix: The TM1637 uses high-speed bit-banging. If your jumper wires exceed 30cm (12 inches), the parasitic capacitance of the wire slows the rise-time of the 5V logic signal, causing the display IC to misread the clock edges.

• Shorten the wires.
• Alternatively, add 4.7kΩ pull-up resistors between the 5V rail and both the CLK and DIO lines to sharpen the rising edges.

Extending and Simplifying the Build

Once you have the baseline code running, you can adapt the project to your specific needs.

How to Simplify (The "Just Show a Number" Approach)

If you are building a simple counter and don't need custom segments or colons, strip the loop() down to a single line. Delete the uint8_t data[] array and rely entirely on the library's built-in integer parser:

void loop() {
  int sensorValue = analogRead(A0); // Read a potentiometer or sensor
  display.showNumberDec(sensorValue, true); // true = pad with leading zeros
  delay(100);
}

How to Extend (Adding an RTC for a Wall Clock)

To turn this into a persistent 24-hour wall clock, add a DS3231 Real Time Clock (RTC) module to the Arduino's hardware I2C pins (A4/A5).

1. Wire the DS3231 SDA to A4 and SCL to A5.
2. Install the RTClib library.
3. In the loop(), query the RTC: DateTime now = rtc.now();
4. Combine the hours and minutes into a single integer: int timeData = (now.hour() * 100) + now.minute();
5. Push it to the display with the colon bit enabled: display.showNumberDecEx(timeData, 0b01000000, true);
