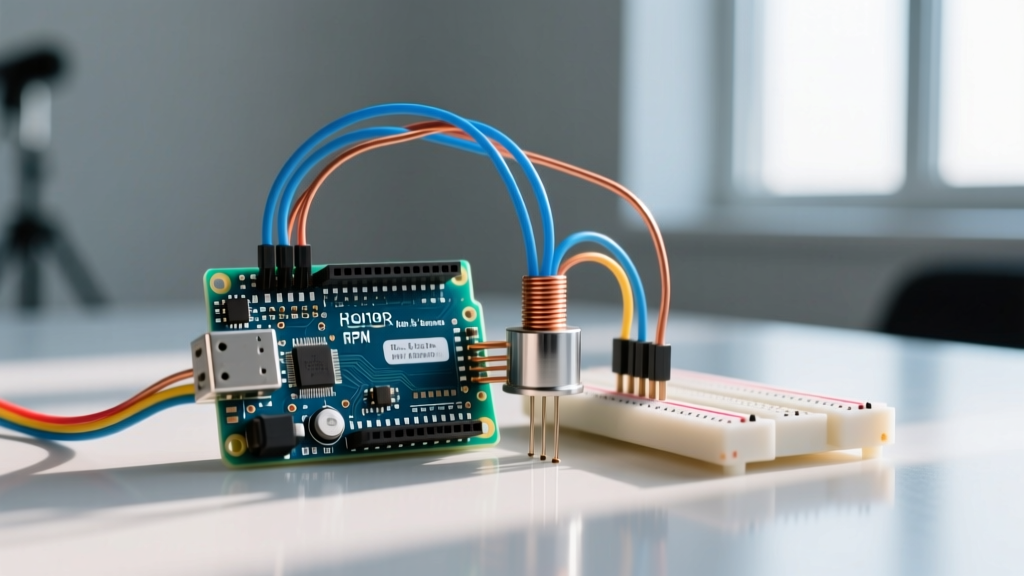

How to Wire and Debug a Hall Sensor Arduino RPM Counter

A hall sensor Arduino setup translates magnetic fields into actionable data—usually rotational speed (RPM), proximity, or linear magnetic field strength. Whether you are building a DIY tachometer for a small engine, a bicycle speedometer, or a brushless DC motor commutation feedback loop, the underlying physics remains the same: a semiconductor generates a voltage proportional to the magnetic flux density passing through it.

However, bench implementation is where most hobbyists hit a wall. Floating inputs, missing pull-up resistors, and magnetic polarity confusion turn a simple 5-minute wiring job into hours of serial monitor debugging. This guide provides a complete, production-ready build for a dual-mode digital/analog hall effect sensor circuit, followed by a rigorous debugging framework for when things go wrong.

Project Spec Sheet & Hardware BOM

The circuit below utilizes two distinct hall effect sensors to demonstrate both digital RPM counting and analog field strength measurement. Prices reflect typical 2026 hobbyist market rates for genuine or high-quality clone components.

Pin Mapping & Wiring Guide

Wiring hall sensors requires attention to output topology. The A3144 is an open-collector (open-drain) device. It can pull the signal line to ground, but it cannot drive it high. If you wire it directly to a microcontroller pin without a pull-up resistor, the pin will float when no magnet is present, resulting in phantom interrupts and erratic RPM readings.

Complete Compilable Code (Arduino Uno R3)

The following C++ code targets the Arduino Uno R3. It uses a hardware interrupt on Pin 2 to count digital pulses from the A3144 for RPM calculation, while simultaneously polling the ADC on A0 to read the linear magnetic field strength from the SS49E. It includes built-in timeout error handling to detect disconnected sensors.

/*
 * Hall Sensor Arduino RPM & Field Strength Meter
 * Target: Arduino Uno R3 (ATmega328P)
 * Sensors: A3144 (Digital RPM), SS49E (Analog Linear)
 */

// --- Pin Definitions ---
#define HALL_DIGITAL_PIN 2    // Must be an interrupt-capable pin (2 or 3 on Uno)
#define HALL_ANALOG_PIN  A0   // Analog pin for linear sensor

// --- Configuration Constants ---
#define POLES_PER_REV    1    // Number of magnets on the rotating target
#define ANALOG_NEUTRAL   512  // Expected ADC value at 0mT (approx 2.5V on 10-bit ADC)
#define TIMEOUT_MS       2000 // Timeout threshold to flag disconnected/stalled sensor

// --- Volatile Variables for ISR ---
volatile unsigned long pulseCount = 0;
volatile unsigned long lastPulseTime = 0;

// --- Global State ---
unsigned long previousMillis = 0;
const long interval = 500; // Update serial output every 500ms

void setup() {
  Serial.begin(115200);

  // Configure digital pin with internal pull-up as a fallback
  // (External 10k pull-up is still highly recommended for noise immunity)
  pinMode(HALL_DIGITAL_PIN, INPUT_PULLUP);

  // Attach hardware interrupt on FALLING edge (A3144 pulls to GND when triggered)
  attachInterrupt(digitalPinToInterrupt(HALL_DIGITAL_PIN), pulseISR, FALLING);

  Serial.println("Hall Sensor System Initialized.");
}

void pulseISR() {
  pulseCount++;
  lastPulseTime = millis();
}

void loop() {
  unsigned long currentMillis = millis();

  if (currentMillis - previousMillis >= interval) {
    previousMillis = currentMillis;

    // Safely read volatile variables
    noInterrupts();
    unsigned long localPulseCount = pulseCount;
    unsigned long localLastPulse = lastPulseTime;
    pulseCount = 0; // Reset counter for next interval
    interrupts();

    // --- Error Handling: Timeout Check ---
    if (localPulseCount == 0 && (currentMillis - localLastPulse > TIMEOUT_MS) && localLastPulse != 0) {
      Serial.println("ERR: HALL_TIMEOUT_2000MS");
    } else {
      // Calculate RPM: (pulses / interval_sec) / poles * 60
      float pulsesPerSecond = localPulseCount / (interval / 1000.0);
      float rpm = (pulsesPerSecond / POLES_PER_REV) * 60.0;

      // Read Analog Linear Sensor (SS49E)
      int analogVal = analogRead(HALL_ANALOG_PIN);
      int fieldDelta = analogVal - ANALOG_NEUTRAL; // Positive = South, Negative = North

      Serial.print("RPM: ");
      Serial.print(rpm, 1);
      Serial.print(" | Analog ADC: ");
      Serial.print(analogVal);
      Serial.print(" (Delta: ");
      Serial.print(fieldDelta);
      Serial.println(")");
    }
  }
}

Debugging: First Three Things to Check When It Fails

When your serial monitor refuses to cooperate, avoid blindly rewriting code. Hardware and physics dictate the behavior of hall sensors. If you encounter issues, follow this ranked diagnostic tree.

1. The Exact Error: "ERR: HALL_TIMEOUT_2000MS"

If your serial monitor outputs this exact string, the microcontroller has not registered a single falling edge on Pin 2 for over two seconds, despite having seen at least one pulse previously. Ranked causes:

1. Magnetic Polarity Mismatch: The A3144 is a unipolar sensor. It only triggers when the South pole of a magnet faces the branded side of the sensor. If your rotating magnet flipped, or you are using the North pole, the sensor will remain permanently off. Fix: Flip the magnet.
2. Magnetic Field Too Weak (Air Gap): The A3144 has a typical operate point (Bop) of 30 Gauss. If the air gap between the magnet and the sensor face exceeds 15-20mm (depending on magnet strength), the field density drops below the threshold. Fix: Reduce the air gap to under 10mm.
3. Missing External Pull-Up Resistor: While the code enables INPUT_PULLUP, the internal ATmega328P pull-up is ~30kΩ to 50kΩ. In high-EMI environments (like near a BLDC motor), this weak pull-up results in slow rise times, causing the interrupt to miss the edge. Fix: Verify your external 10kΩ resistor is physically present.

2. Compilation Error: 'digitalPinToInterrupt' was not declared in this scope

This occurs when you port the code to a non-Arduino core board (like a raw ATtiny or an older ESP8266 core) that doesn't support the standard Arduino interrupt macro. Fix: Replace digitalPinToInterrupt(HALL_DIGITAL_PIN) with the hardcoded interrupt number. For Arduino Uno Pin 2, use attachInterrupt(0, pulseISR, FALLING);.

3. Symptom: RPM Reads Double the Actual Speed

Your physical tachometer reads 1000 RPM, but the serial monitor reads 2000 RPM. Ranked causes:

1. Wrong POLES_PER_REV Constant: If your target wheel has two magnets (one North, one South), and you are using a bipolar latching sensor (like the A3212), it will trigger twice per revolution. Fix: Change #define POLES_PER_REV 1 to 2.
2. Contact Bounce (Rare for Hall, common for reed switches): True solid-state hall sensors do not suffer from mechanical contact bounce. If you are actually using a glass reed switch instead of an A3144, you need a software debounce delay in the ISR.

Extending and Simplifying the Build

Depending on your end application, you may not need the full dual-sensor setup. Here is how to adapt the circuit.

To Simplify (RPM Only): Remove the SS49E analog sensor and the analogRead() logic. Power the A3144 directly from the 3.3V or 5V rail depending on your microcontroller. This reduces the BOM cost to under $2 and frees up ADC pins for other tasks.

To Extend (Wireless Telemetry): Swap the Arduino Uno R3 for an ESP32-WROOM-32 DevKit V1. Crucial Hardware Note: The ESP32 operates at 3.3V logic. The A3144 can run on 3.3V, but the SS49E requires a minimum of 2.7V and outputs up to VCC. If you run the SS49E at 3.3V, the neutral point shifts to ~1.65V (ADC value ~2048 on a 12-bit scale). You must update ANALOG_NEUTRAL to 2048 and multiply the ADC delta by the ESP32's 12-bit resolution factor. Furthermore, use analogReadMilliVolts() on the ESP32 for more accurate linear readings, as the ESP32's raw ADC is notoriously non-linear at the extremes of its range.

Hall Sensor Arduino FAQ

Can I use a 3.3V ESP32 instead of a 5V Arduino Uno for this hall sensor?

Yes, but with caveats. The A3144 digital sensor operates perfectly down to 3.3V, provided you use a 3.3V pull-up resistor to avoid feeding 5V back into the ESP32's GPIO pin. However, the SS49E analog sensor is ratiometric. If you power it at 3.3V, its neutral output becomes 1.65V instead of 2.5V. You must adjust your code's baseline ADC expectations and account for the ESP32's 12-bit ADC (0-4095) versus the Uno's 10-bit ADC (0-1023).

Why is my hall sensor Arduino code returning random RPM spikes?

Random spikes are almost always caused by electromagnetic interference (EMI) inducing voltage transients on long, unshielded sensor wires, tricking the microcontroller into registering a false falling edge. To fix this, keep the wires between the sensor and the Arduino under 30cm, use twisted pair wire for the signal and ground, and ensure the 100nF decoupling capacitor is soldered directly across the VCC and GND pins of the sensor itself, not at the Arduino end of the wire.

What is the difference between A3144, A3212, and SS49E hall sensors?

The A3144 is a unipolar switch: it turns on with a South magnetic field and turns off when the field is removed. The A3212 is a bipolar latching switch: it turns on with a South pole and stays on until a North pole is applied (ideal for counting alternating N/S magnet rings). The SS49E is a linear analog sensor: it outputs a continuous voltage proportional to the magnetic field strength, allowing you to measure the exact distance or gauss level rather than just a binary on/off state. For a detailed breakdown of magnetic field measurement principles, refer to the All About Circuits guide on Hall Effect sensors.

Do I need to use hardware interrupts for RPM counting?

For low-speed applications (under 60 RPM), you can use digitalRead() inside the main loop(). However, for anything faster, hardware interrupts (via attachInterrupt()) are mandatory. As documented in the official Arduino attachInterrupt reference, polling a pin in the main loop will miss pulses if your code is busy executing delays, updating displays, or performing floating-point math. Interrupts ensure the pulse is counted at the exact microsecond it occurs, regardless of what the main loop is doing.
