The Direct Answer: What Is the Purpose of a Diode?

The purpose of a diode is to act as a one-way valve for electrical current. It allows current to flow freely in the forward direction while blocking it in the reverse direction. In practical DC circuits, we use diodes to protect sensitive components from voltage spikes, steer current paths, drop voltages, and convert AC to DC (rectification).

If you think of a plumbing system, a diode is exactly like a mechanical check valve. Water (current) pushes the internal flapper open to flow through, but if the water tries to reverse, it pushes the flapper shut, sealing the pipe.

Symbol and Pinout Identification

On a schematic, the diode symbol is a triangle pointing toward a vertical line. The triangle side is the Anode (A), and the line side is the Cathode (K). Current flows from Anode to Cathode (conventional current flow).

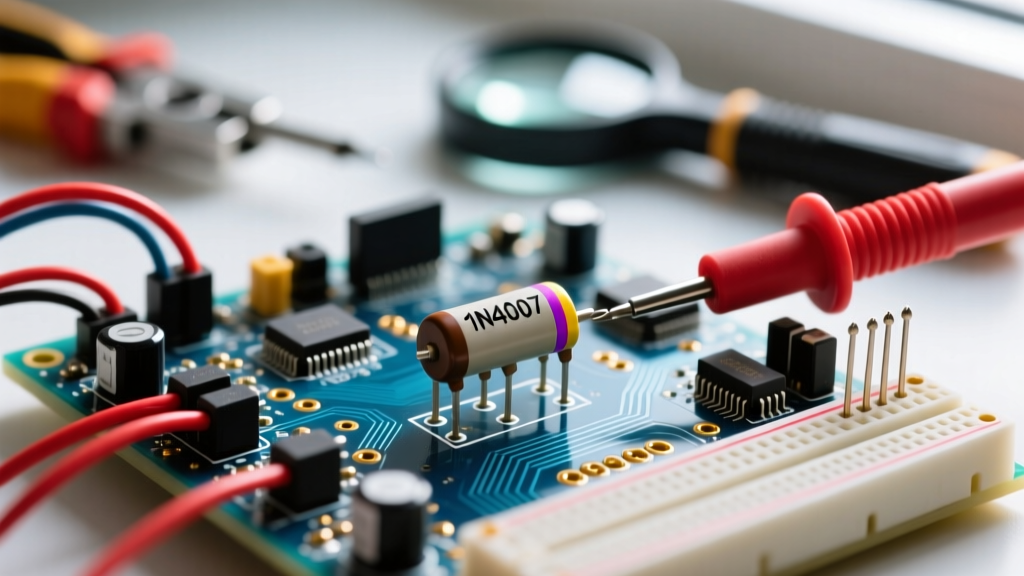

On a physical through-hole component like the standard DO-41 package, you will see a printed ring or band on one end. That band marks the Cathode. When reading the schematic, the line on the symbol corresponds to the physical band on the component.

Bench Tip: If you are working with surface-mount diodes (SMD), the cathode band is still used, but on some small SMD packages, it might just be a subtle colored line. Always verify with a multimeter before soldering if the silkscreen is ambiguous.

Operation Regions and Safe Default Part Numbers

To select the right diode, you need to understand its three operating regions and keep a stock of reliable, high-volume default part numbers. The table below outlines the regions and the exact components you should keep in your bench drawer.

Operation Region Bias Condition Typical Voltage / Current Practical Effect
Forward Bias Anode more positive than Cathode Vf: 0.3V (Schottky) to 0.7V (Silicon). If: Up to rated max. Diode conducts. Drops a fixed voltage (Vf) and dissipates heat (P = Vf × I).
Reverse Bias Cathode more positive than Anode Vr: Up to PIV rating. Ir: Microamps (leakage). Diode blocks current. Acts as an open circuit with negligible leakage.
Breakdown Reverse voltage exceeds PIV rating Vz / Vbr: Specific to part. Current spikes rapidly. Avalanche or Zener effect. Destructive for standard diodes; controlled in Zener diodes.

The "Safe Defaults" Inventory

When designing or repairing a circuit, these four part numbers cover 95% of general-purpose hobbyist and bench needs. Never use a part number without verifying its Peak Inverse Voltage (PIV/Vr) and Forward Current (If) ratings against your circuit's worst-case scenario.

  • 1N4007: Standard silicon rectifier. 1A continuous forward current, 1000V PIV. The ultimate general-purpose workhorse for power supplies and flyback protection.
  • 1N4148: Small-signal silicon switching diode. 300mA continuous, 100V PIV. Extremely fast switching time (4ns). Use for logic steering and high-frequency signal clipping.
  • 1N5819: Schottky barrier diode. 1A continuous, 40V PIV. Low forward voltage drop (~0.3V). Use in low-voltage DC power paths to minimize heat and voltage loss.
  • 1N4733A: 1W Zener diode, 5.1V breakdown. Use for crude voltage regulation and overvoltage clamping on microcontroller GPIO pins.

How to Select and Bias a Diode for the Job

Let's look at a complete, real-world application circuit: the flyback (freewheeling) diode across an inductive load. This is the most common protective use of a diode on the workbench.

Application Circuit: 12V Relay Driver

When you switch off an inductive load like a relay coil, the collapsing magnetic field generates a massive reverse voltage spike (often hundreds of volts) that will instantly destroy your switching transistor. We use a reverse-biased diode to clamp this spike.

Component List & Values:

  • VCC: 12V DC Power Supply
  • U1: 12V Relay (Coil resistance = 120Ω, operating current = 100mA)
  • Q1: 2N2222 NPN Transistor (Switch)
  • R1: 1kΩ Base Resistor (Limits base current to ~11mA, ensuring transistor saturation)
  • D1: 1N4007 Flyback Diode

Wiring and Biasing:

  1. Connect one end of the relay coil to the +12V rail.
  2. Connect the other end of the relay coil to the Collector of Q1.
  3. Connect the Emitter of Q1 to Ground (GND).
  4. Connect R1 between your microcontroller GPIO (5V logic) and the Base of Q1.
  5. Place D1 across the relay coil: Connect the Cathode (band) to the +12V rail, and the Anode to the Q1 Collector.

How it works: When Q1 is ON, the Collector is pulled near ground (approx 0.2V). The diode has 12V on its Cathode and 0.2V on its Anode. It is reverse-biased and does nothing. When Q1 turns OFF, the relay coil's inductance tries to keep current flowing in the same direction, causing the Collector voltage to spike above 12V. This flips the bias across the diode to forward bias. The 1N4007 conducts, clamping the spike to roughly 12.7V (12V supply + 0.7V diode drop), safely dissipating the stored magnetic energy as heat in the coil and diode.

Selection Rule: Your flyback diode's reverse voltage rating (Vr) must exceed the supply voltage (1000V for the 1N4007 is massive overkill for 12V, but it's cheap and safe). Its forward current rating (If) must exceed the steady-state coil current (1A > 100mA).

Failure Modes and Multimeter Testing

Diodes are robust, but they do fail. Understanding how they fail helps you diagnose the root cause of a blown board. According to Fluke's diagnostic guidelines, testing a diode requires a digital multimeter (DMM) with a dedicated diode test mode, as standard resistance modes do not provide enough voltage to forward-bias the silicon junction.

Common Failure Modes

  • Short Circuit (Thermal Runaway): The most common failure. If a diode passes too much forward current, it overheats. Silicon's resistance drops as it heats up, drawing more current until the junction melts and fuses into a dead short. This usually blows the upstream fuse.
  • Punch-Through (Overvoltage): If the reverse voltage exceeds the PIV rating, the junction experiences avalanche breakdown. In standard rectifiers, this is destructive and results in a short circuit.
  • Open Circuit (Mechanical): Less common, usually caused by physical stress cracking the internal wire bond, or a massive surge current vaporizing the junction before it can short.

Step-by-Step Multimeter Testing

Follow this exact sequence to verify a diode's health on or off the board (note: in-circuit testing can yield false readings due to parallel paths; desolder one leg for absolute certainty).

  1. Set the DMM: Turn the dial to the diode symbol (a triangle with a line). The meter will output a small test voltage (usually 2V to 3V) across the probes.
  2. Forward Bias Test: Place the Red probe on the Anode and the Black probe on the Cathode.
    Expected Reading: 0.500V to 0.800V for standard silicon, 0.200V to 0.400V for Schottky. This is the forward voltage drop (Vf).
  3. Reverse Bias Test: Swap the probes. Place the Black probe on the Anode and the Red probe on the Cathode.
    Expected Reading: "OL" (Over Limit) or "1" on the display, indicating infinite resistance.
  4. Diagnose the Result:
    • If you read 0.000V or near zero in both directions, the diode is shorted. Throw it away.
    • If you read "OL" in both directions, the diode is open. Throw it away.
    • If you read a voltage drop in reverse bias, the diode is leaky and must be replaced.

Frequently Asked Questions

What is the purpose of a diode in an alternator?

In an automotive alternator, a bank of six diodes (a rectifier bridge) serves the purpose of converting the 3-phase AC voltage generated by the stator into the DC voltage required to charge the 12V car battery and run the vehicle's electronics. Without these diodes, the alternator would output alternating current, which would damage the battery and modern ECUs. As noted in standard semiconductor theory, this full-wave rectification ensures the output polarity never reverses, even as the rotor spins.

What is the purpose of a diode across a relay coil?

Placed in reverse-bias across a relay or solenoid coil, the diode acts as a "flyback" or "snubber." Its purpose is to provide a safe, localized path for the inductive kickback current to circulate when the driving transistor switches off. Without it, the collapsing magnetic field generates a high-voltage spike that will arc across mechanical switch contacts or permanently puncture the silicon junction of a solid-state transistor.

What happens if I install a diode backward?

If you install a standard diode backward (reverse-biased) in a DC power line, it will block the current flow, and your circuit will simply not turn on. However, if the supply voltage exceeds the diode's Peak Inverse Voltage (PIV) rating, the junction will undergo avalanche breakdown. It will violently short-circuit, likely drawing massive current until the power supply's overcurrent protection trips or the diode physically cracks and vents smoke.

Can I use a Schottky diode instead of a standard silicon diode?

You can, but you must check the voltage ratings. A Schottky diode (like the 1N5819) has a much lower forward voltage drop (~0.3V vs 0.7V) and switches significantly faster, making it ideal for high-frequency switching power supplies and low-voltage solar applications where every fraction of a volt matters. However, Schottky diodes generally have much lower maximum reverse voltage ratings and higher reverse leakage currents. Never swap a 1N4007 (1000V) for a 1N5819 (40V) in a mains-rectification or high-voltage flyback application.
