A voltmeter measures the electrical potential difference (voltage) between two specific points in a circuit, expressed in volts (V). Unlike an ammeter, which measures the flow of electrons, a voltmeter measures the "pressure" pushing those electrons. In practical terms, it tells you if a circuit is energized, if a power supply is delivering its rated output, or if a voltage drop across a component is within normal operating limits.
The Core Function: Potential Difference in Real Circuits
To understand what a voltmeter does, think of water in a pressurized pipe system. If you want to know how hard the water is being pushed, you don't measure the flow rate (gallons per minute); you measure the pressure difference between two points using a gauge. Voltage is electrical pressure. A 120V AC wall outlet has a higher electrical "pressure" than a 12V DC car battery, meaning it can push current through higher-resistance loads.

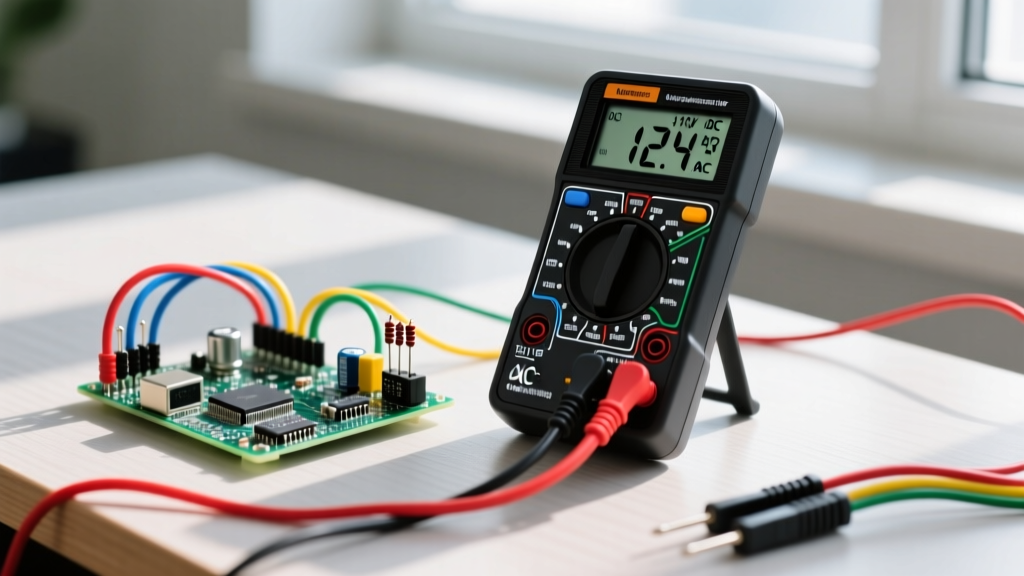

Modern digital multimeters (DMMs) function as voltmeters by utilizing a high-impedance input circuit, typically around 10 MΩ (megohms). According to All About Circuits, this high internal resistance ensures the meter draws virtually zero current from the circuit under test. If a voltmeter had low impedance, it would act as a load itself, pulling down the voltage and giving you a falsely low reading—a phenomenon known as "loading the circuit."
Meter Setup, CAT Ratings, and Probe Placement
Measuring AC mains voltage (120V/240V) carries a severe risk of shock or arc flash. Always de-energize circuits when possible. If live testing is required, wear appropriate PPE, use one hand to keep current away from your chest, and ensure your meter is rated for the environment.
Meter Setup Block
- Dial Position: Select V~ (or VAC) for alternating current (wall outlets, transformers) and V⎓ (or VDC) for direct current (batteries, solar panels, logic boards).
- Lead Jacks: Insert the black probe into the COM (common) jack. Insert the red probe into the V/Ω (volts/ohms) jack. Never leave the red probe in the Amps (A or mA) jack when measuring voltage.
- Range: If using a manual-ranging meter, start at the highest voltage setting (e.g., 600V or 1000V) and step down for better resolution. Auto-ranging meters handle this automatically.
Safety Categories (CAT Ratings)
When measuring mains electricity, your meter's CAT rating is critical. The IEC 61010 standard defines measurement categories based on transient voltage spikes. As detailed by Fluke's safety guidelines, a CAT III 600V meter is required for fixed building wiring (outlets, breaker panels, hardwired appliances), while CAT IV is needed for the service entrance and utility meter. A CAT II meter is only safe for plug-in appliances and electronics.
Probe Placement
A voltmeter must always be connected in parallel with the component or source you are testing. Place one probe on each side of the load, or between a live conductor and a known ground/neutral. Never place a voltmeter in series (breaking the circuit to insert the probes), as this will interrupt the circuit and yield a meaningless reading.
Expected Voltage Readings: Good vs. Bad Values
Knowing what a good reading looks like numerically is the difference between effective troubleshooting and guessing. Per ANSI C84.1 standards, a nominal 120V AC circuit in the US should read between 114V and 126V at the receptacle. Below is a reference table for common test points.
| Test Point | Meter Setting | Expected (Good) Reading | Bad Reading & Troubleshooting Clue |
|---|---|---|---|
| 120V Receptacle (Hot to Neutral) | VAC | 114V - 126V | <110V (Voltage drop/overloaded circuit); >130V (Loose neutral at panel) |
| 120V Receptacle (Hot to Ground) | VAC | 114V - 126V | 0V (Open ground or reversed hot/neutral); ~2V lower than Hot-Neutral (Normal wire resistance) |
| 240V Dryer/Range Outlet (Hot to Hot) | VAC | 228V - 252V | 120V (One leg of the double-pole breaker has tripped) |
| 12V Automotive Battery (Engine Off) | VDC | 12.4V - 12.7V | <12.0V (Sulfated/dead cell); >13.0V (Surface charge or alternator overcharging) |
| 5V Logic Pin (Arduino/ESP32 VCC) | VDC | 4.8V - 5.2V | <4.5V (USB cable voltage drop or inadequate power supply causing brownouts) |
| 24V HVAC Thermostat (R to C) | VAC | 24V - 28V | <20V (Undersized transformer or failing relay coil drawing excess current) |
Common Mistakes That Give Misleading Readings
Even with a high-end meter like a Fluke 87V or a Klein MM700, operator error or environmental factors can produce readings that lead you down the wrong diagnostic path.
1. Falling for Ghost Voltages
If you measure a disconnected wire running in the same conduit as a live 120V wire, your meter might read 40V to 60V AC. This is a "ghost voltage" caused by capacitive coupling between the wires. Because the DMM has a 10 MΩ input impedance, it acts like an antenna, picking up the induced electromagnetic field. To verify if a voltage is real, switch your meter to LoZ (Low Impedance) mode if equipped, or use an older solenoid-type tester (a "Wiggy"). LoZ drops the meter's internal resistance to about 3 kΩ, bleeding off the phantom charge and correctly displaying 0V.
2. The "Amps Jack" Dead Short
If you forget to move your red probe from the 10A current jack back to the V/Ω jack before measuring a wall outlet, you are placing a near-zero ohm shunt directly across 120V AC. This creates a dead short. The resulting arc flash can melt the probe tips, blow the meter's internal HRC (High Rupturing Capacity) fuse, or cause the meter to explode if it lacks proper safety shielding. Always visually verify your lead jacks before touching the probes to a circuit.
3. Measuring Across an Open Switch
When testing a standard single-pole light switch in the OFF position, placing your probes across the two switch terminals will read 120V (the full source voltage). Beginners often misinterpret this as the switch being "ON" or "passing power." In reality, an open switch drops the entire circuit voltage across its own gap. A closed (ON) switch will read 0V across its terminals because there is no potential difference when the contacts are touching.
Frequently Asked Questions
What does a voltmeter do when it displays "OL"?
"OL" stands for Overload or Open Loop. When measuring voltage, it means the potential difference exceeds the maximum range of the meter's current setting. If you are on a manual 200mV range and touch a 9V battery, the screen will flash "OL". Simply turn the dial to a higher range (e.g., 20V or 200V). If you are already on the 600V or 1000V setting and see "OL", do not proceed—the voltage is dangerously high for your specific meter and poses a severe arc flash risk.
What does a voltmeter do differently than a continuity tester?
A continuity tester only checks if a complete, unbroken path exists between two points, usually by sending a tiny internal battery current through the circuit to light an LED or beep. It cannot tell you if a wire is energized or what the voltage level is. A voltmeter, conversely, is a passive observer; it does not supply power to the circuit (except for a microscopic leakage current). Always use a voltmeter to verify a circuit is dead before using a continuity tester, as applying continuity mode to a live circuit will instantly blow the meter's internal fuse.
Why does my voltmeter read 0V but the breaker is confirmed ON?
If the breaker is ON but you read 0V between Hot and Neutral, you likely have an open neutral or a tripped GFCI upstream. However, if you read 0V between Hot and Ground, but 120V between Neutral and Ground, your hot and neutral wires are reversed at the receptacle. Always measure all three combinations (Hot-Neutral, Hot-Ground, Neutral-Ground) at a receptacle to build a complete diagnostic picture before pulling the device out of the wall.
