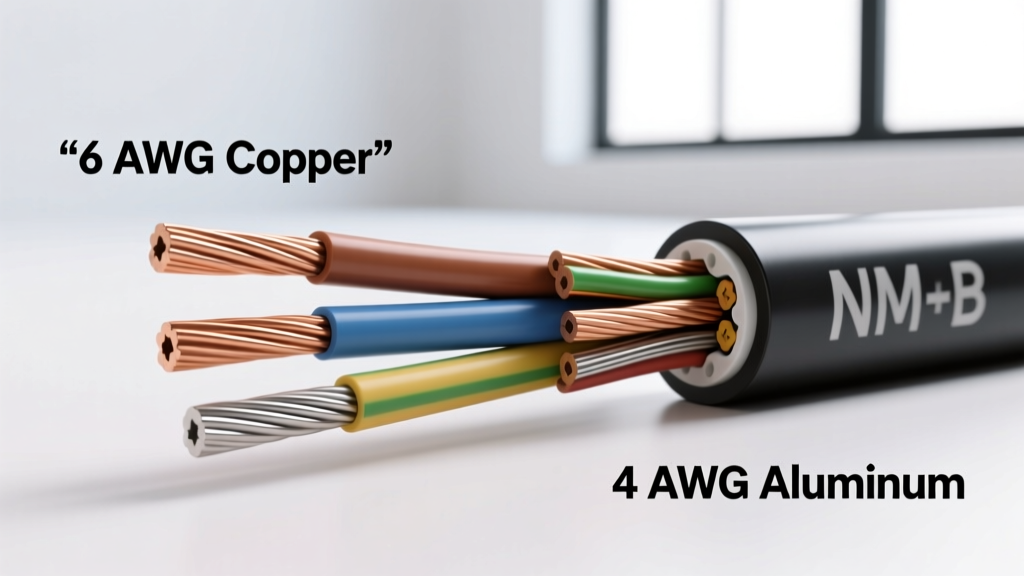

The correct wire size for a 60 amp circuit breaker depends entirely on your insulation type and installation method. For standard 75°C rated terminals, use 6 AWG copper THHN/THWN in conduit or 4 AWG copper if using NM-B (Romex) cable. If you are pulling aluminum, step up to 4 AWG aluminum THHN. The most common mistake DIYers make is buying 6 AWG NM-B cable for a 60A breaker; because NM-B is restricted to the 60°C ampacity column by the National Electrical Code (NEC), 6 AWG NM-B is only rated for 55 amps and will fail inspection.
Below is the complete design walkthrough, topology breakdown, and testing protocol for building a safe, code-compliant 60-amp feeder circuit, typically used for garage subpanels, EV chargers, or heavy workshop equipment.
The 60-Amp Feeder Topology: Node-by-Node Design Walkthrough
A 60-amp 240V feeder is not just a single wire; it is a 4-wire topology (two ungrounded hots, one grounded neutral, one equipment grounding conductor) that distributes split-phase power. Let us map the circuit from source to load using distinct node labels.
- Node A (Source): The 60A double-pole breaker in the main service panel (e.g., Square D HOM260 or Eaton BR260). This node provides overcurrent protection and serves as the feed origin.
- Node B (The Feeder Path): The physical cable or conduit run. This is where voltage drop and thermal derating occur. If using conduit, you are pulling four individual THHN/THWN-2 conductors. If using cable, you are routing a 4-wire SER or NM-B jacket.
- Node C (Load Termination): The main lugs of a subpanel (e.g., an Eaton 125A main-lug panel) or a dedicated 60A disconnect switch. Here, the neutral and ground bars must remain strictly isolated.
Spec-Sheet Table: Conductor Sizing by Insulation and Material
The NEC dictates that terminal ampacity is limited by the lowest temperature rating of any connected component. Most modern breakers and lugs are rated for 75°C, but NM-B cable is legally capped at the 60°C column regardless of its internal wire insulation. Refer to the Southwire Ampacity Chart and NFPA NEC Article 310.16 for the governing data.
| Wire Material | Insulation / Cable Type | Temperature Column Used | Required AWG for 60A | Actual Ampacity at that Column |
|---|---|---|---|---|
| Copper | THHN / THWN-2 (in conduit) | 75°C (Terminal limit) | 6 AWG | 65 Amps |
| Copper | NM-B (Romex) or UF-B | 60°C (NEC 334.80 limit) | 4 AWG | 70 Amps |
| Aluminum | XHHW / THHN (in conduit) | 75°C (Terminal limit) | 4 AWG | 65 Amps |
| Aluminum | USE-2 / Direct Burial | 60°C (NEC 339.3 limit) | 2 AWG | 75 Amps |
Behavior Matrix: How Variables Shift Your Wire Size
Why choose a single 60A subpanel feeder topology over running three separate 20A branch circuits back to the main panel? A 60A feeder consolidates panel space, allows for local subpanel expansion, and balances 240V loads. However, the behavior of Node B (the feeder) changes drastically when environmental variables shift.
| Variable Changed at Node B | Effect on Circuit Behavior | Required Design Action |
|---|---|---|
| Run distance exceeds 100 feet | Voltage drop exceeds 3% under full load; 240V drops below 232V, causing motor overheating at Node C. | Upsize conductors to 4 AWG Copper (or 2 AWG Aluminum) strictly for voltage drop mitigation, even though 6 AWG handles the thermal load. |
| Ambient temperature exceeds 86°F (30°C) | Thermal derating reduces the effective ampacity of the wire insulation before the breaker ever trips. | Apply NEC Table 310.15(B)(1) correction factors. If in a 110°F attic, 6 AWG THHN derates to ~56A. You must upsize to 4 AWG THHN. |
| More than 3 current-carrying conductors bundled | Conduit fill heat buildup triggers NEC 310.15(C)(1) bundling derating. | If pulling two 60A circuits in one conduit (8 hots + 2 neutrals), derating applies. Upsize wire or use separate conduit runs. |
| Load type changes to 'Continuous' | NEC defines continuous as ON for 3+ hours (e.g., EV charger). Breaker and wire must be rated at 125% of load. | If the continuous load is exactly 60A, a 60A breaker is illegal. You must use a 70A or 80A breaker and 4 AWG or 3 AWG wire. |
Failure Modes at the Extremes: What Breaks and Why
Understanding series and parallel failure modes in a split-phase feeder is critical for troubleshooting. Here is what happens when the topology breaks down at the extremes.
The Open Neutral (Floating Node C)
If the neutral wire at Node B breaks or is left loose at Node C, the 240V loads (like a water heater) will continue to function perfectly. However, the 120V circuits in the subpanel will now act as a series circuit. If one 120V leg draws 10 amps and the other draws 1 amp, the voltage will divide inversely to the resistance. The lightly loaded leg will spike to 200V+, instantly destroying electronics, LED drivers, and appliance control boards. This is why the neutral lug torque at Node A and Node C is non-negotiable.
The Dead Short (Node B to Ground)
If a hot conductor's insulation fails and contacts the equipment grounding conductor (EGC), the fault current attempts to return to the source. A 60A breaker relies on its magnetic trip mechanism to clear this in milliseconds. If you used undersized wire (e.g., 8 AWG) or a high-impedance ground path, the wire will melt and start a fire inside the wall before the breaker's magnetic coil generates enough force to snap the contacts open. The EGC must be sized to handle the let-through current; for a 60A breaker, a 10 AWG copper ground or 8 AWG aluminum ground is the NEC minimum.
Extreme Voltage Drop (The 200-Foot Run)
At 200 feet, 6 AWG copper carrying 60A will drop roughly 10 volts (over 4%). When a 5HP air compressor at Node C starts up, it draws locked-rotor amperage (LRA). If the baseline voltage has already sagged to 228V due to wire resistance, the LRA pull will drag it below 200V. The motor will stall, draw massive current, and trip the breaker—or worse, burn out the motor windings. Always calculate voltage drop using the formula: VD = (2 x K x I x D) / CM, where K=12.9 for copper, I=current, D=distance, and CM=circular mils of the wire.
The Mains 'Breadboard' Protocol: Pre-Energization Testing
In low-voltage electronics, you breadboard a circuit and test with a multimeter before applying main power. In mains electrical, 'breadboarding' means completing the physical topology, verifying torque, and testing for faults before flipping the 60A breaker at Node A. Never energize a new feeder without completing these numbered steps.
- Verify De-Energization: Ensure the new 60A breaker at Node A is in the OFF position. Verify the main panel bus bars where you connected the breaker are dead (if applicable) or that you are safely working around live bus bars with insulated tools.
- Torque Verification: Use a calibrated inch-pound torque screwdriver. Check the breaker label for the required torque (typically 35 to 45 in-lbs for 6 AWG to 4 AWG wire). Tighten the lugs at Node A and Node C to this exact spec. Under-torqued lugs cause high-resistance arcing; over-torqued lugs strip the aluminum bus or snap the screw.
- Continuity and Isolation Testing: Set your multimeter to the continuity/ohms setting.
- Test between Hot 1 and Hot 2: Should read 'OL' (Open Loop / Infinite resistance).
- Test between Hot 1 and Neutral: Should read 'OL'.
- Test between Hot 1 and Ground: Should read 'OL'.
- Test between Neutral and Ground at Node C (Subpanel): Should read 'OL'. (If it reads near 0 ohms, you have illegally bonded the neutral and ground at the subpanel).
- The Megger Test (Optional but Recommended): For long underground runs in conduit, use a megohmmeter (Megger) set to 500V DC. Apply it between the hot conductors and the ground. You should read >100 Megohms. A low reading indicates nicked insulation inside the conduit that will eventually cause a ground fault.
- Energize and Measure: Turn on the 60A breaker at Node A. Immediately measure the voltage at Node C (Subpanel lugs). You should read ~240V across the two hots, and ~120V from each hot to neutral. If you read 240V from Hot to Neutral, your neutral is open or miswired. Shut it down immediately.
By treating your 60-amp feeder design with the same rigorous topology mapping and pre-flight testing as a complex PCB layout, you eliminate the guesswork. Stick to 6 AWG copper THHN in conduit or 4 AWG for NM-B, respect the 75°C terminal limits, and your subpanel will deliver clean, safe power for decades.
